Fuel tank for GILERA PIAGGIO VESPA LX 4T ie E3 from 2012

Fuel tank

1

Fuel tank

672399

Not Available

2

TAPPO SERBATOIO COMPLETO

259832

$1,10 Unit Price incl. VAT

3

GUARNIZIONE

258160

$1,00 Unit Price incl. VAT

4

VITE TE M6x20

018639

$0,16 Unit Price incl. VAT

5

RONDELLA ELASTICA (6,4X11,8X1)

016406

$0,34 Unit Price incl. VAT

6

PIASTRINA ELASTICA M6

254485

$0,34 Unit Price incl. VAT

7

RONDELLA PIANA METALLICA

013880

$0,08 Unit Price incl. VAT

8

INDICATORE LIVELLO CARBURANTE

CM025713

$95,90 Unit Price incl. VAT

9

MOLLETTA RITEGNO TUBI

CM013201

$0,40 Unit Price incl. VAT

10

FASCETTA A STRAPPO

145298

$0,08 Unit Price incl. VAT

11

RONDELLA ELASTICA (6,4X11,8X1)

016406

$0,34 Unit Price incl. VAT

12

FASCETTA

573918

$1,09 Unit Price incl. VAT

13

Hose clamp

623743

Not Available

14

TUBO CARBURANTE COMPL.

655378

$61,35 Unit Price incl. VAT

15

GHIERA SERRAGGIO POMPA

576546

$4,71 Unit Price incl. VAT

16

Gasket

576542

Not Available

17

Complete fuel pump assembly

641136

$391,93 Unit Price incl. VAT

18

FILTRO POMPA CARBURANTE

639357

$78,73 Unit Price incl. VAT

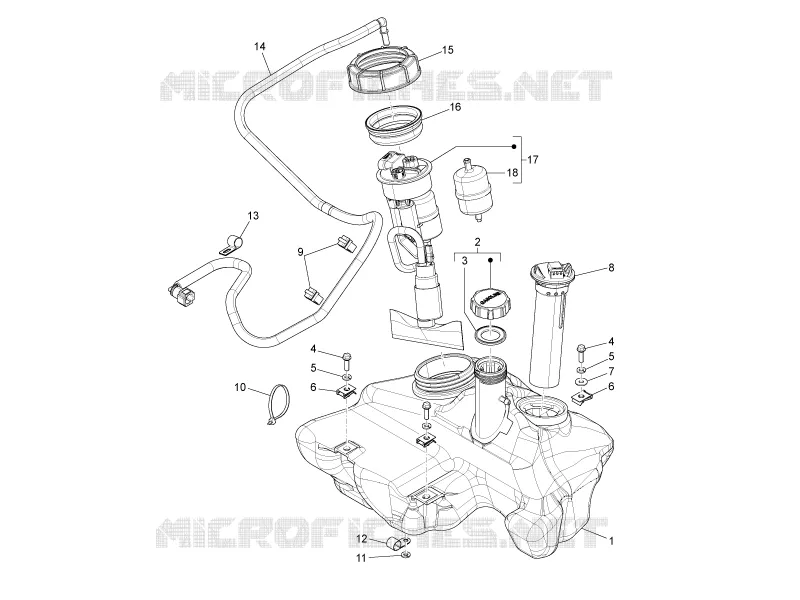

Find the detailed Fuel tank GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
