1
Engine displacement
125
2
Model
LX
3
Year
2012
4
Trim
LX 4T ie E3
5
Parts Catalog

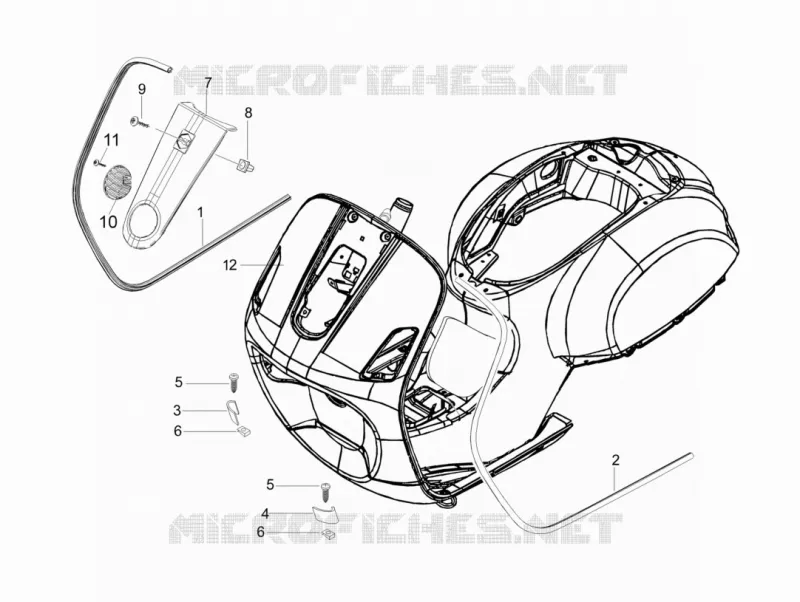

Front shield
6
Parts Diagram
Parts Catalog
Rear headlamps - Turn signal lamps
by
Front shield
1
2
3
4
5
5
6
6
7
8
9
10
11
12
1
Right-hand shield edge
622188
$24,03 Unit Price incl. VAT
2
Left-hand shield edge
622187
$24,03 Unit Price incl. VAT
3
Butt strap DX
299965
$7,69 Unit Price incl. VAT
4
Butt strap SX
299964
$7,69 Unit Price incl. VAT
5
Screw d3,5x9,5
008432
$3,65 Unit Price incl. VAT
6
Spring plate
CM017403
$0,50 Unit Price incl. VAT
7
Painted steering cover
65596420M5
Not Available
7
Painted steering cover
65596400R7
$124,34 Unit Price incl. VAT
7
Steering column cover
65596400H5
Not Available
7
Steering column cover
65596400M4
$124,34 Unit Price incl. VAT
7
Steering column cover
65596440BR
Not Available
7
Steering column cover
65596420C5
Not Available
7
Steering column cover
655964
$45,34 Unit Price incl. VAT
7
Steering column cover
65596400GP
$124,34 Unit Price incl. VAT
7
Steering column cover
65596440ND
Not Available
7
Painted steering cover
65596420DE
Not Available
8
Self tapping screw L=20 mm
267958
$0,25 Unit Price incl. VAT
9
Expansion plug
199190
$2,95 Unit Price incl. VAT
10
Steering Cover Front Cowl
655965
$36,58 Unit Price incl. VAT
11
Self tapping screw L=20 mm
267958
$0,25 Unit Price incl. VAT
12
Body shield
6221145
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
