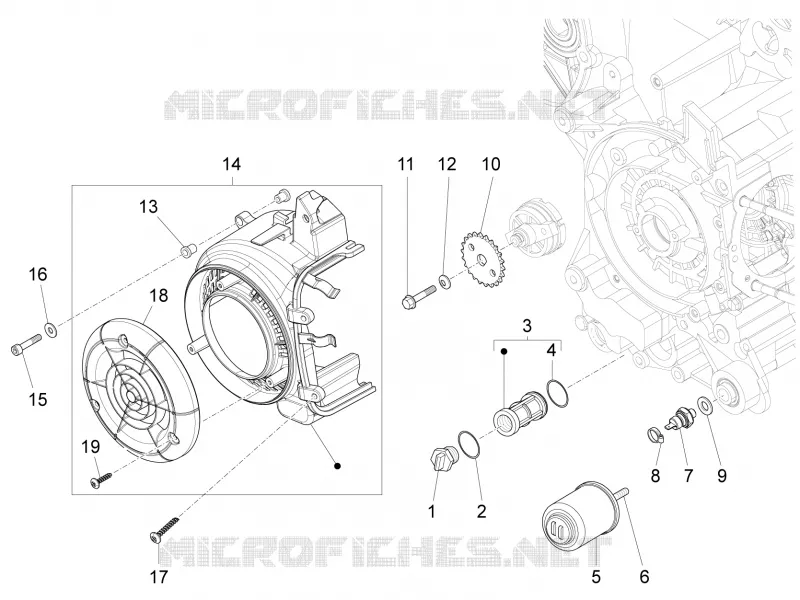

Flywheel magneto cover - Oil filter
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Oil filter plug
826165
$5,88 Unit Price incl. VAT
2
O-ring 31,47x1,78
285536
$0,92 Unit Price incl. VAT
3
Intake oil filter
483841
$3,55 Unit Price incl. VAT
4
O-ring 20,35x1,78
288474
$0,08 Unit Price incl. VAT
5
Oil filter
82635R
$12,36 Unit Price incl. VAT
6
Special screw
483776
$1,49 Unit Price incl. VAT
7
Oil pressure sensor
641541
Not Available
8
Hose clamp
825481
$3,38 Unit Price incl. VAT
9
Washer 10.5X16X2.5
486075
$1,58 Unit Price incl. VAT
10
Oil pump gear
287913
$6,47 Unit Price incl. VAT
11
Screw w/ flange M6x14
833722
Not Available
12
Belleville spring Ø6,4xØ20x2
436695
$0,59 Unit Price incl. VAT
13
Bush
843757
$1,44 Unit Price incl. VAT
14
Air deflector
876918
Not Available
15
Hex socket screw M5x25
486972
$0,09 Unit Price incl. VAT
16
Washer Ø5xØ12x1.1
828583
$0,08 Unit Price incl. VAT
17
screw
259577
$0,17 Unit Price incl. VAT
18
Conveyor cover
876919
$24,59 Unit Price incl. VAT
19
Self-tap screw M3x20
258146
$0,25 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
