Engine displacement
125
2
Model
LX
3
Year
2009
4
Trim
LX 4T ie E3
5
Parts Catalog
Saddle/seats
6
Parts Diagram
Parts Catalog
Rear wheel
by
Air filter
Saddle/seats
1
2
3
4
5
6
7
8
9
1
Saddle assembly
CM02520200GS
$402,57 Unit Price incl. VAT
1
Saddle assembly
CM02520200A1
Not Available
1
Saddle assembly
65428500A3
Not Available
1
Saddle assembly
CM02520200E8
$402,57 Unit Price incl. VAT
2
Pad
577492
$4,21 Unit Price incl. VAT
3
Stop buffer
296456
$2,77 Unit Price incl. VAT
4
Lock, assy
497457
$57,27 Unit Price incl. VAT
5
Bracket
296743
$5,73 Unit Price incl. VAT
6
Hose clamp
298729
$0,34 Unit Price incl. VAT
7
Hook for bag
494634
$10,35 Unit Price incl. VAT
8
Saddle opening transmission kit
653994
$47,91 Unit Price incl. VAT
9
Screw w/ flange
436788
Not Available

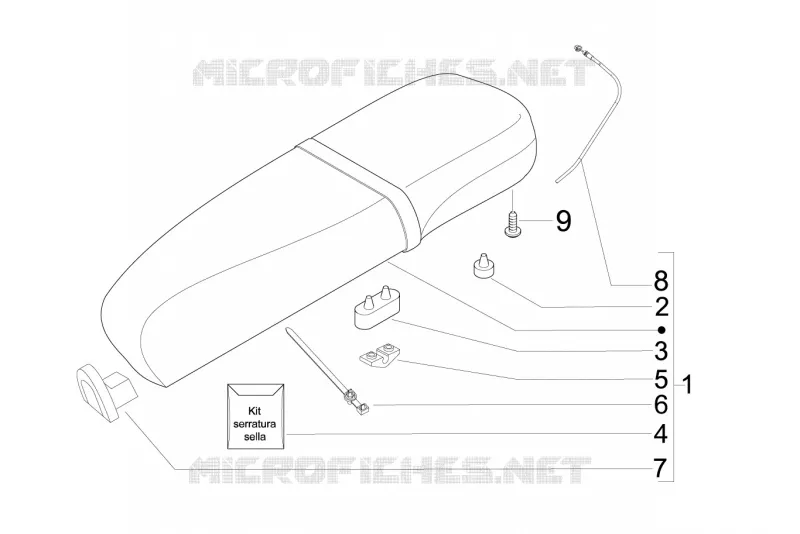

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
