Engine displacement
125
2
Model
LX
3
Year
2009
4
Trim
LX 4T E3
5
Parts Catalog
Secondary air box
6
Parts Diagram
Parts Catalog
Handlebars - Master cil.
by
Head unit - Valve
Secondary air box
1
Complete air duct
834473
$22,07 Unit Price incl. VAT
2
Self-tap screw M3x20
258146
$0,25 Unit Price incl. VAT
3
Filtering element
832703
$2,12 Unit Price incl. VAT
4
Spring plate M6
254485
$0,34 Unit Price incl. VAT
5
Gasket
833802
$3,05 Unit Price incl. VAT
6
Complete s.a.s. pipe
844116
$15,53 Unit Price incl. VAT
7
Gasket
832943
$0,72 Unit Price incl. VAT
8
Hose clamp
CM002904
$0,42 Unit Price incl. VAT
9
Hose clamp
CM001904
$0,75 Unit Price incl. VAT
10
s.a.s. joint pipe
831259
$2,05 Unit Price incl. VAT
11
SAS valve
82731R
$89,76 Unit Price incl. VAT
12
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
12
Screw
015760
$2,25 Unit Price incl. VAT
13
Flywheel cover
834476
$1,34 Unit Price incl. VAT
14
Self tapping screw
297498
$0,08 Unit Price incl. VAT
15
Depression pipe
845635
$2,87 Unit Price incl. VAT
16
Bush
843757
$1,44 Unit Price incl. VAT
17
Nut
843572
Not Available
18
Hose clamp
CM001904
$0,75 Unit Price incl. VAT
19
screw
259577
$0,17 Unit Price incl. VAT
20
Hex socket screw M5x25
486972
$0,09 Unit Price incl. VAT
21
Screw M5x22
828662
$0,25 Unit Price incl. VAT
22
Washer Ø5xØ12x1.1
828583
$0,08 Unit Price incl. VAT
23
Hose clamp
847778
$0,33 Unit Price incl. VAT

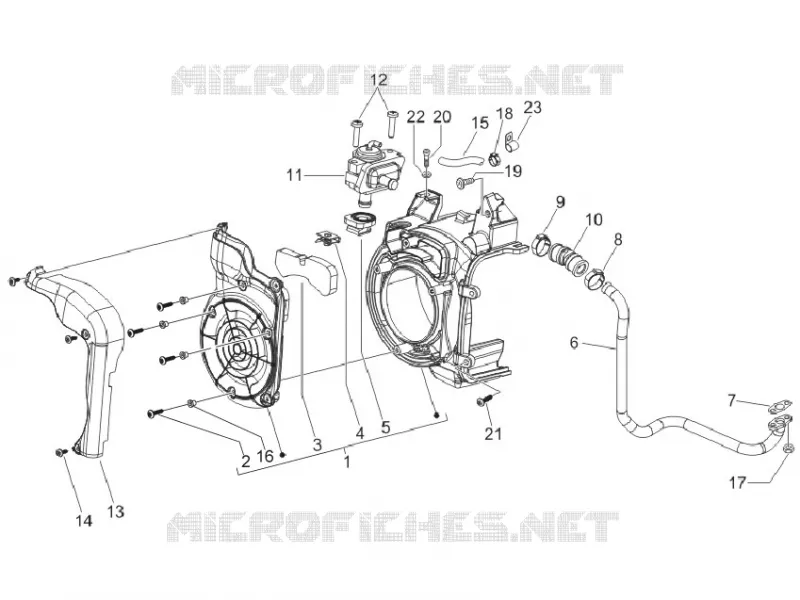

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
