1
Engine displacement
125
2
Model
LX
3
Year
2007
4
Trim
LX 4T E3
5
Parts Catalog

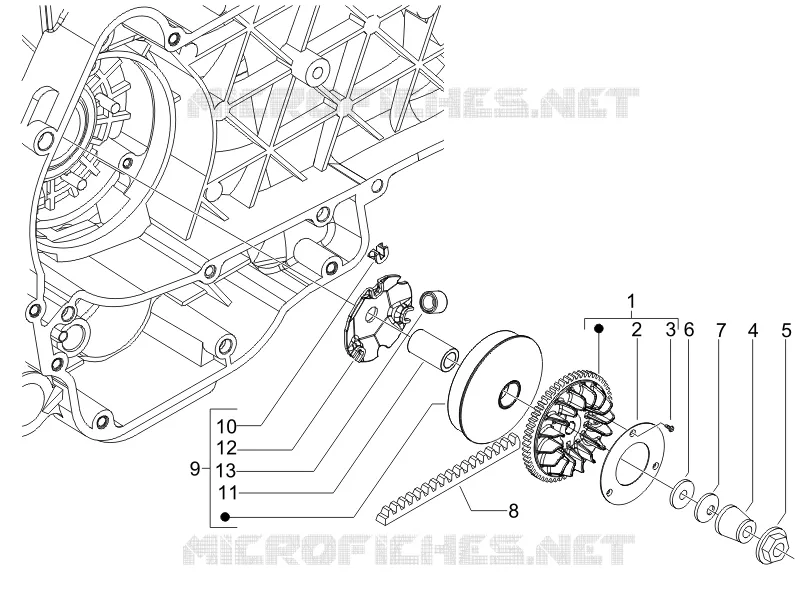

Driving pulley
6
Parts Diagram
Parts Catalog
Stand/s
by
Saddle/seats
Driving pulley
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Complete fixed driving half-pulley
845607
$36,35 Unit Price incl. VAT
2
Plate
832715
$8,19 Unit Price incl. VAT
3
screw
008370
$2,95 Unit Price incl. VAT
4
Bush
827386
$3,89 Unit Price incl. VAT
5
Flanged nut M12
436783
Not Available
6
Plain washer
433391
$0,29 Unit Price incl. VAT
7
Plain washer 17x32x1
434885
$0,44 Unit Price incl. VAT
8
(Mitsuboshi) V-belt
841213
$113,91 Unit Price incl. VAT
9
Complete roller housing
CM144402
$101,25 Unit Price incl. VAT
10
Sliding block
434855
Not Available
11
Rollers kit
CM1038035
$19,85 Unit Price incl. VAT
12
Roller contrast
842204
$8,31 Unit Price incl. VAT
13
Spacer
483889
$19,92 Unit Price incl. VAT
13
Pin roller weight g.8,5
CM103803
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
