1
Engine displacement
125
2
Model
LT
3
Year
2016
4
Trim
LT 4T 3V ie E3
5
Parts Catalog
Driving pulley
6
Parts Diagram
Parts Catalog
Rear wheel
by
Flywheel magneto cover - Oil filter

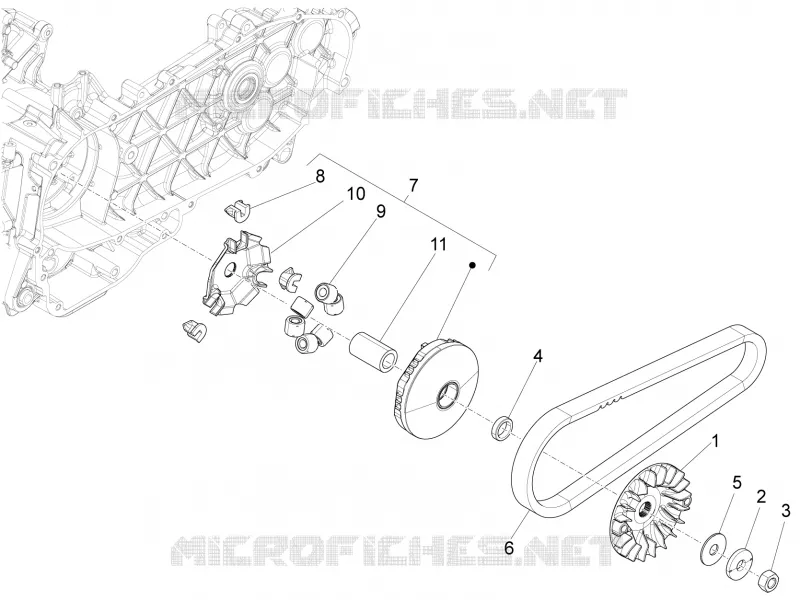

Driving pulley
1
2
3
4
5
6
7
8
9
10
11
1
Fixed driving half pulley
1A000798
$51,03 Unit Price incl. VAT
2
Belleville spring
880950
$2,69 Unit Price incl. VAT
3
Nut M12x1,25 - 6H
B016001
Not Available
4
Spacer
B017652
$1,82 Unit Price incl. VAT
5
Flat washer
B016004
Not Available
6
V-belt
B016447
Not Available
6
V-belt
1A003396
$20,90 Unit Price incl. VAT
7
Complete roller housing
CM169001
Not Available
8
Sliding block
B016649
Not Available
9
roller complete
CM169101
Not Available
10
Roller contrast
B017664
$6,77 Unit Price incl. VAT
11
Spacer
B016650
$8,20 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
