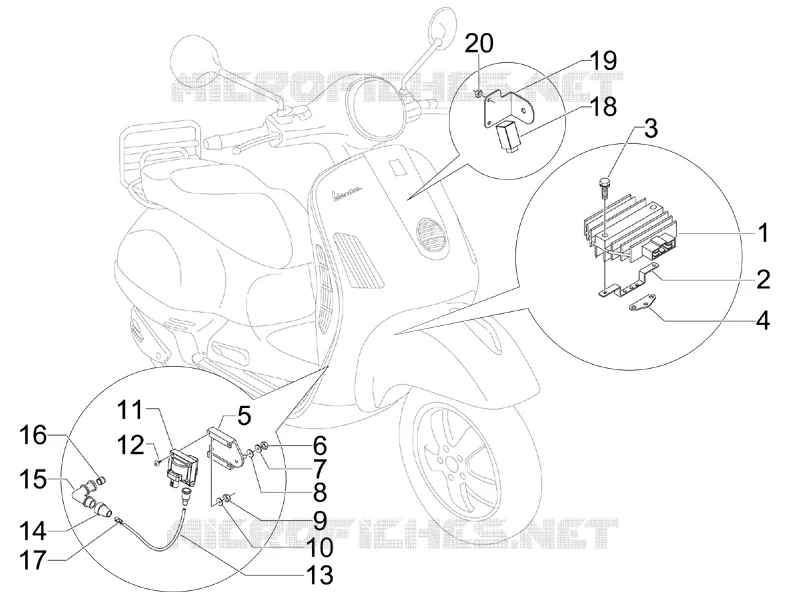

Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Voltage regulator
641709
$310,50 Unit Price incl. VAT
1
Voltage regulator
58208R
Not Available
2
Voltage regulator support bracket
621157
$7,23 Unit Price incl. VAT
3
Screw w/ flange M6x30
289731
Not Available
4
Regulator retainer plate
622838
$5,38 Unit Price incl. VAT
5
AT coil support bracket
641105
$8,16 Unit Price incl. VAT
6
Nut M6
020106
$0,08 Unit Price incl. VAT
7
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
8
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
9
Nut M 3
020003
$2,27 Unit Price incl. VAT
10
Washer 3.2x5.7x0.9
012554
$1,56 Unit Price incl. VAT
11
HT coil
58120R
$65,76 Unit Price incl. VAT
12
screw M3x20
583236
$3,70 Unit Price incl. VAT
13
H.V. cable
080341
$5,89 Unit Price incl. VAT
14
Insulating cap
071671
$1,29 Unit Price incl. VAT
15
Screened cap
969348
$8,17 Unit Price incl. VAT
16
Spark.plug protection clamp
641643
$4,82 Unit Price incl. VAT
17
End cap
015014
$4,82 Unit Price incl. VAT
18
Turn indicator control
638755
Not Available
19
Bulb device bracket
652706
$5,38 Unit Price incl. VAT
20
Nut
969224
$0,42 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
