1
Engine displacement
300
2
Model
GTV
3
Year
2009
4
Trim
GTV 4T 4V ie Touring
5
Parts Catalog
Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Helmet huosing - Undersaddle
by

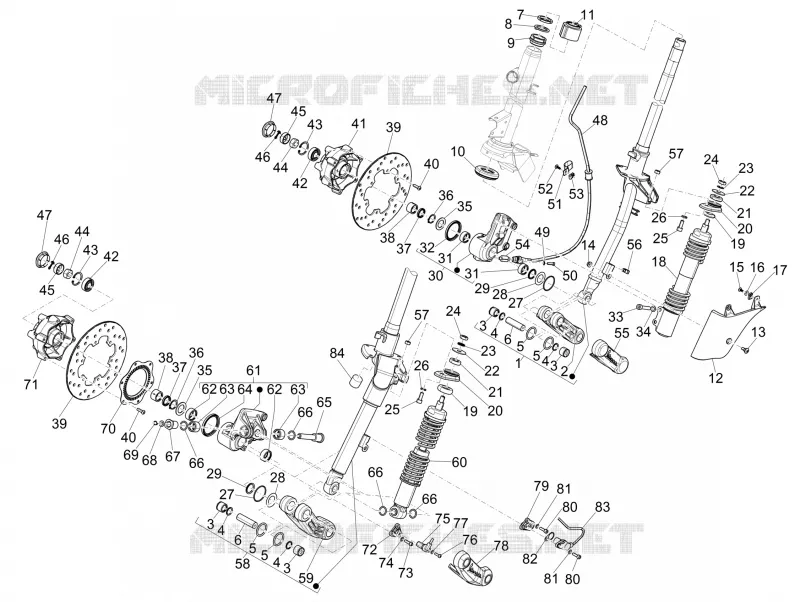

Fork/steering tube - Steering bearing unit
1
2
3
3
3
3
4
4
4
4
5
5
5
5
6
7
8
8
9
10
11
11
12
13
14
14
15
16
17
18
19
19
20
21
21
22
23
23
24
25
25
26
26
26
27
27
28
28
29
29
30
31
31
32
33
34
35
35
36
36
37
37
38
38
39
39
40
40
41
42
42
43
43
44
44
45
45
46
46
47
47
48
49
50
51
52
53
54
55
56
57
57
58
59
60
61
62
62
63
63
64
65
66
66
66
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
80
81
81
82
83
84
1
Steering tube complete with arm
1C0006215
$650,76 Unit Price incl. VAT
1
Arm complete steering tube
1U0000765
Not Available
2
Left suspension arm
6691315
$163,39 Unit Price incl. VAT
2
Left suspension arm
6483975
$109,60 Unit Price incl. VAT
3
Roller cage
198513
$5,97 Unit Price incl. VAT
4
Gasket ring
119219
$0,67 Unit Price incl. VAT
5
Gasket
006731
$0,34 Unit Price incl. VAT
6
Piston pin
177451
$3,03 Unit Price incl. VAT
7
Steering tube ring nut
0111094
$2,60 Unit Price incl. VAT
8
Steering security plate
582787
$3,65 Unit Price incl. VAT
9
Upper thrust ring
650693
Not Available
10
Lower steering bearing
650075
Not Available
11
Collar
582828
$4,82 Unit Price incl. VAT
12
Front suspension cover
59861500VG
$54,27 Unit Price incl. VAT
12
Front suspension cover
59861500M5
$54,27 Unit Price incl. VAT
12
Front suspension cover
598615
Not Available
12
Front suspension cover
1C001153
$24,90 Unit Price incl. VAT
12
Front suspension cover
59861500M4
Not Available
13
Metric screw TBC
259348
$2,99 Unit Price incl. VAT
14
Nut
969224
$0,42 Unit Price incl. VAT
15
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
16
Washer
012528
$0,34 Unit Price incl. VAT
17
Spring plate
CM017410
$0,34 Unit Price incl. VAT
18
Complete front shock absorber
56286R
$85,05 Unit Price incl. VAT
19
Pad
174874
$2,36 Unit Price incl. VAT
20
Shock absorber connection bracket
601556
$7,73 Unit Price incl. VAT
20
Bracket
273693
$7,23 Unit Price incl. VAT
21
Washer Ø5,3xØ10x0,5
006975
$0,17 Unit Price incl. VAT
22
Washer
174088
$0,84 Unit Price incl. VAT
23
Washer
012535
$0,08 Unit Price incl. VAT
24
Nut
021210
$0,16 Unit Price incl. VAT
25
screw
597150
$3,65 Unit Price incl. VAT
25
screw M8x20
599009
$3,65 Unit Price incl. VAT
26
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
27
O-ring
177408
$0,08 Unit Price incl. VAT
28
Washer
177445
$0,34 Unit Price incl. VAT
29
Ring
177521
$0,66 Unit Price incl. VAT
30
Maintenance
597758
$59,64 Unit Price incl. VAT
31
Drawn cap
177436
$9,18 Unit Price incl. VAT
32
Ring
177494
$1,85 Unit Price incl. VAT
33
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
34
Spring washer
709047
$0,08 Unit Price incl. VAT
35
Washer
177414
$0,75 Unit Price incl. VAT
36
Circlip
006422
$0,16 Unit Price incl. VAT
37
Gasket ring
177443
$1,77 Unit Price incl. VAT
38
Roller cage
177442
$4,04 Unit Price incl. VAT
39
Brake disc
56484R
$35,10 Unit Price incl. VAT
40
Hex socket screw M6x20
667152
$0,26 Unit Price incl. VAT
41
Wheel hub
648031
Not Available
42
Bearing
177610
$8,41 Unit Price incl. VAT
43
Snap ring
006635
$0,25 Unit Price incl. VAT
44
Nut
021114
$0,51 Unit Price incl. VAT
45
Cap
177609
$2,19 Unit Price incl. VAT
46
Split pin
012789
$0,16 Unit Price incl. VAT
47
Cover
092517
Not Available
48
Speedometer transmission
650837
$18,36 Unit Price incl. VAT
49
Washer Ø5,3xØ10x0,5
006975
$0,17 Unit Price incl. VAT
50
screw M5x16
031058
$2,95 Unit Price incl. VAT
51
Hose clamp
271477
$3,65 Unit Price incl. VAT
52
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
53
Spring plate
CM017410
$0,34 Unit Price incl. VAT
54
Pinion
267819
$7,69 Unit Price incl. VAT
55
Front suspension arm cover
561433
Not Available
56
Elastic spring
231590
$0,25 Unit Price incl. VAT
57
Nut M8x6,5
020108
$0,08 Unit Price incl. VAT
58
Steering tube complete with arm
1C0006215
$650,76 Unit Price incl. VAT
59
Left suspension arm
6691315
$163,39 Unit Price incl. VAT
60
Complete front shock absorber
1C000922R
$244,35 Unit Price incl. VAT
61
Pin and shock absorber support
1C0011915
$651,53 Unit Price incl. VAT
62
Drawn cap
177436
$9,18 Unit Price incl. VAT
63
Roller cage
1C000167
$10,19 Unit Price incl. VAT
64
Ring
177494
$1,85 Unit Price incl. VAT
65
Threaded pin
1C000500
$29,76 Unit Price incl. VAT
66
Gasket ring
482302
$2,95 Unit Price incl. VAT
67
Threaded bush
1C000499
$22,46 Unit Price incl. VAT
68
Washer
847183
$0,15 Unit Price incl. VAT
69
Safety washer
006408
$0,09 Unit Price incl. VAT
70
Front ABS tone wheel
669115
$9,33 Unit Price incl. VAT
71
Rear wheel hub
598715
$88,52 Unit Price incl. VAT
72
Support bracket sensor
1C001251
$23,22 Unit Price incl. VAT
73
Torx Screw
880285
$3,65 Unit Price incl. VAT
74
Flat washer
669282
$1,43 Unit Price incl. VAT
75
ABS sensor
1D0001275
Not Available
76
Torx Screw
880285
$3,65 Unit Price incl. VAT
77
Washer Ø5,3xØ10x0,5
006975
$0,17 Unit Price incl. VAT
78
Swinging arm cover
1C000835
$24,90 Unit Price incl. VAT
79
ABS sensor
1D0001275
Not Available
80
Hex socket screw M6x20
709674
$0,17 Unit Price incl. VAT
81
Spring washer 12x6,4x0,5
006976
$0,08 Unit Price incl. VAT
82
Flat washer
668780
$0,76 Unit Price incl. VAT
83
Speed sensor
1D0007655
$169,07 Unit Price incl. VAT
84
Cover
601026
$0,84 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
