1
Engine displacement
300
2
Model
GTV
3
Year
2016
4
Trim
GTV 4T 4V ie Touring
5
Parts Catalog

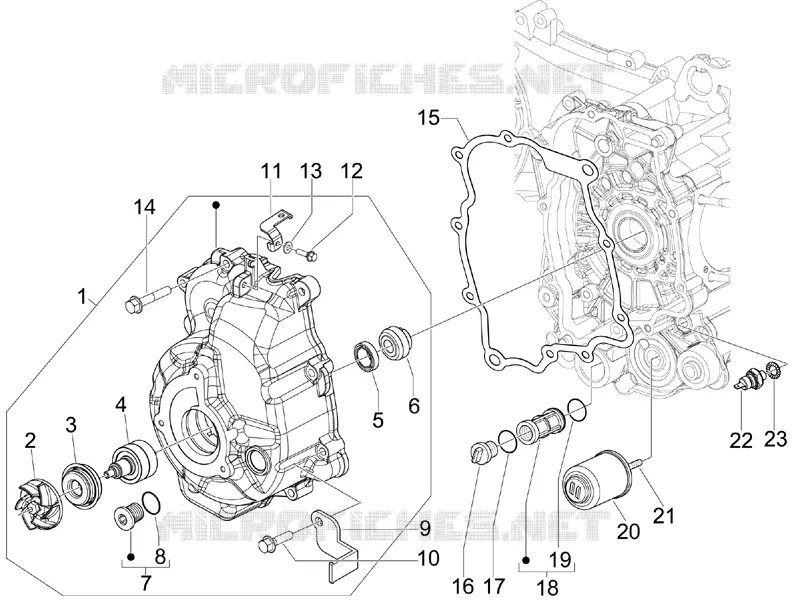

Flywheel magneto cover - Oil filter
6
Parts Diagram
Parts Catalog
Cylinder head cover
by
Brakes pipes - Calipers
Flywheel magneto cover - Oil filter
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
COPERCHIO L.VOLANO COMPL. X RIC.
8798315
$256,68 Unit Price incl. VAT
2
GIRANTE POMPA ACQUA
844730
$3,01 Unit Price incl. VAT
3
ANELLO DI TENUTA POMPA ACQUA
82991R
$24,39 Unit Price incl. VAT
4
ALBERO POMPA ACQUA COMPLETO
8447595
$54,95 Unit Price incl. VAT
5
ANELLO DI TENUTA 20.30.5
82897R
$4,36 Unit Price incl. VAT
6
GIUNTO TRASCINAMENTO POMPA ACQUA
842389
$5,64 Unit Price incl. VAT
7
TAPPO FASATURA X RIC.
8290405
$10,28 Unit Price incl. VAT
8
O-ring
479986
Not Available
9
PIASTRINA SONDA LAMBDA
847716
$5,38 Unit Price incl. VAT
10
VITE ESAGONALE FLANGIATA M6X112,5
B016807
$1,26 Unit Price incl. VAT
11
PIASTRINA RITEGNO CAVI
847717
$3,65 Unit Price incl. VAT
12
VITE A TESTA ESAGONALE FLANGIATA
484123
$0,16 Unit Price incl. VAT
13
RONDELLA ELASTICA BOMBATA
012528
$0,34 Unit Price incl. VAT
14
VITE (M6X35)
414838
$0,67 Unit Price incl. VAT
15
GUARNIZIONE COP.VOLANO
840504
$2,91 Unit Price incl. VAT
16
TAPPO FILTRO OLIO
826165
$5,88 Unit Price incl. VAT
17
GUARNIZIONE OR 31,47x1,78
285536
$0,92 Unit Price incl. VAT
18
FILTRO OLIO ASPIRAZIONE COMPL.
843568
$14,92 Unit Price incl. VAT
19
ANELLO OR 20,35X1,78
288474
$0,08 Unit Price incl. VAT
20
Oil filter
82635R
$12,36 Unit Price incl. VAT
21
VITE SPECIALE FILTRO OLIO
840507
$10,25 Unit Price incl. VAT
22
Minimum oil pressure sensor
1D001138
Not Available
23
ROSETTA (16X10.5X2.5)
486075
$1,58 Unit Price incl. VAT

Find the detailed Flywheel magneto cover - Oil filter GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
