Swinging arm for GILERA PIAGGIO VESPA GTV 4T 4V ie Touring from 2012

Swinging arm

1

Chassis side swinging arm

56474R

Not Available

2

BUSSOLA

598917

$0,67 Unit Price incl. VAT

3

ASTUCCIO A RULLINI

600161

$6,98 Unit Price incl. VAT

4

DISTANZIALE

597857

$15,31 Unit Price incl. VAT

5

VITE TESTA ESAGONALE(M12x1,75)

597914

$14,12 Unit Price incl. VAT

6

ROSETTA PIANA

266845

$0,50 Unit Price incl. VAT

7

DADO

271740

$0,67 Unit Price incl. VAT

8

Engine side swinging arm

5992465

Not Available

9

BOCCOLA A RULLINI C.TE

56127R

$5,55 Unit Price incl. VAT

10

BUSSOLA

597317

$0,92 Unit Price incl. VAT

11

DISTANZIALE

650755

$6,60 Unit Price incl. VAT

12

DISTANZIALE

CM067806

$29,76 Unit Price incl. VAT

13

VITE A TESTA ESAGONALE

271779

$2,11 Unit Price incl. VAT

14

DADO AUTOFRENANTE M10

002440

$0,34 Unit Price incl. VAT

15

STAFFA SUPORTO SILENTBLOC

601815

$67,48 Unit Price incl. VAT

16

BUSSOLA

273460

$0,75 Unit Price incl. VAT

17

SILENT BLOCK

272750

$12,52 Unit Price incl. VAT

18

SILENTBLOC

599250

$8,65 Unit Price incl. VAT

19

ANELLO ELASTICO

006416

$0,08 Unit Price incl. VAT

20

ROSETTA ELASTICA CON DENTATURA

012535

$0,08 Unit Price incl. VAT

21

VITE TE M10x20 CL8.8

031153

$3,65 Unit Price incl. VAT

22

DISTANZIALE

599077

$6,60 Unit Price incl. VAT

23

VITE TESTA ESAG. PARZIALM. FILETTATO

598237

$7,65 Unit Price incl. VAT

24

MOLLA

599059

$4,82 Unit Price incl. VAT

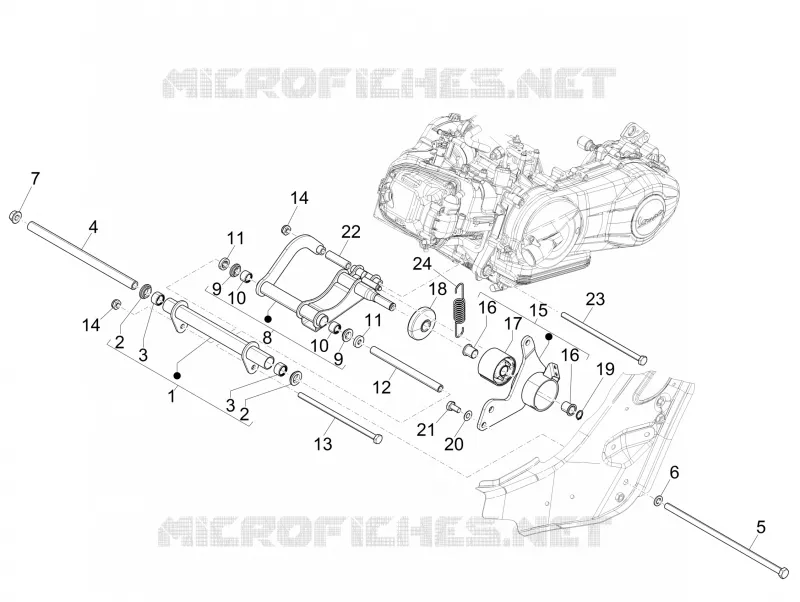

Find the detailed Swinging arm GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
