1
Engine displacement
300
2
Model
GTV
3
Year
2010
4
Trim
GTV 4T 4V ie Touring
5
Parts Catalog

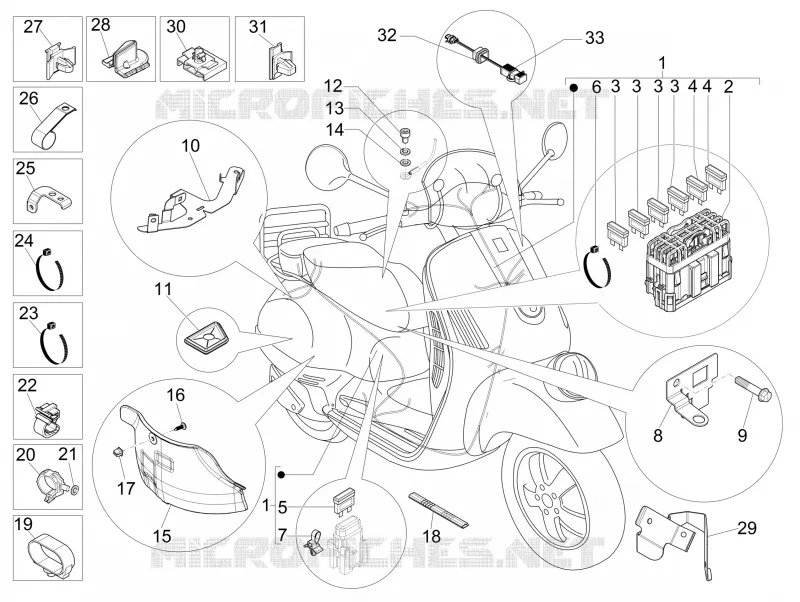

Main cable harness
6
Parts Diagram
Parts Catalog
Anti-percolation system
by
Driving mirror/s
Main cable harness
1
1
2
3
3
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1
Frame harness
641864
Not Available
1
Chassis wire unit
1D000902
$685,49 Unit Price incl. VAT
2
Fuse holder box
584211
$26,74 Unit Price incl. VAT
3
Fuse 7,5A
252945
$0,42 Unit Price incl. VAT
4
Fuse 15A
290860
$5,73 Unit Price incl. VAT
5
Fuse 30A
CM225730
$0,51 Unit Price incl. VAT
6
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
7
Hose clamp 2,7x132
640879
$0,92 Unit Price incl. VAT
8
Fusebox bracket
641532
$4,82 Unit Price incl. VAT
9
Screw w/ flange M6x10
969296
$0,16 Unit Price incl. VAT
10
Connectors support bracket
656331
$28,44 Unit Price incl. VAT
11
Cover
641547
$17,83 Unit Price incl. VAT
12
Tri/lobed hexagonal self-tapping screw
641204
$0,34 Unit Price incl. VAT
13
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
14
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
15
Electrical system cover
656332
$10,76 Unit Price incl. VAT
16
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
17
Expansion plug
199190
$2,95 Unit Price incl. VAT
18
Guard
CM077703
$4,32 Unit Price incl. VAT
19
Non return spring l=27
CM006904
$0,25 Unit Price incl. VAT
19
Non return spring
CM006902
$0,92 Unit Price incl. VAT
20
Pipes/cables retainer spring
CM006903
$1,43 Unit Price incl. VAT
20
Pipes/cables retainer spring L=16
CM006907
$1,51 Unit Price incl. VAT
20
Non return spring
CM006911
$0,42 Unit Price incl. VAT
21
Washer
097734
$0,75 Unit Price incl. VAT
22
Pipes/cables retainer spring
CM013202
$1,10 Unit Price incl. VAT
23
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
24
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
25
Bracket
639843
$6,30 Unit Price incl. VAT
26
Hose clamp
638792
$4,82 Unit Price incl. VAT
27
Connector spring
584520
$5,38 Unit Price incl. VAT
28
Guard
656656
$6,15 Unit Price incl. VAT
29
Connectors support bracket
624998
$20,60 Unit Price incl. VAT
29
Connectors support bracket
1D000979
$15,74 Unit Price incl. VAT
30
Plugs spring
641599
$4,82 Unit Price incl. VAT
31
Plugs spring
641599
$4,82 Unit Price incl. VAT
31
Spring for connector
639560
$0,67 Unit Price incl. VAT
32
Fairlead
1B001591
$1,56 Unit Price incl. VAT
33
USB port
1D001377
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
