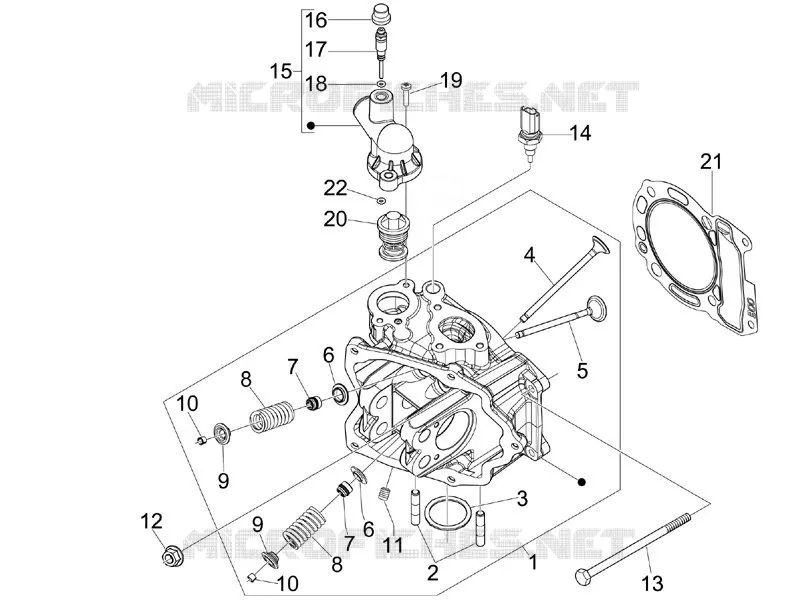

Head unit - Valve
1
2
3
4
5
6
6
7
7
8
8
9
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Cylinder head assembly
8800506
$942,78 Unit Price incl. VAT
2
Stud bolt M7
435629
$0,67 Unit Price incl. VAT
3
Exhaust pipe gasket
480853
$4,89 Unit Price incl. VAT
4
Exhaust valve
873009
Not Available
5
Intake valve
872999
Not Available
6
Lower cap
483711
$1,35 Unit Price incl. VAT
7
Valve gasket ring
436438
$1,34 Unit Price incl. VAT
8
Spring
828480
$2,25 Unit Price incl. VAT
9
Upper cap
483914
$0,91 Unit Price incl. VAT
10
Valve half-cone
285846
$2,94 Unit Price incl. VAT
11
Plug
877432
Not Available
12
Nut M8x1,25
411296
$0,50 Unit Price incl. VAT
13
screw M6x112,5
B016807
$1,26 Unit Price incl. VAT
14
Temperature gauge
640485
Not Available
15
Thermostat cover
B018147
$38,43 Unit Price incl. VAT
16
Bleed valve cap
063435
$0,34 Unit Price incl. VAT
17
Bleed screw
845605
$3,21 Unit Price incl. VAT
18
Gasket
297027
$1,10 Unit Price incl. VAT
19
Torx Screw M5x20
B016808
$0,20 Unit Price incl. VAT
20
Thermostat
82831R5
$32,18 Unit Price incl. VAT
21
Cylinder head gasket 0,3 mm
848168
Not Available
22
Packing
878906
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
