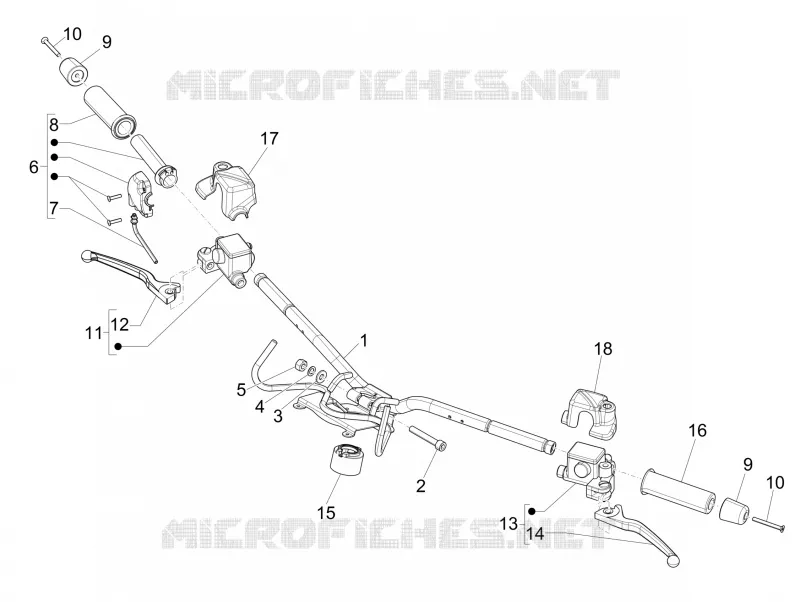

Handlebars - Master cil.
1
2
3
4
5
6
7
8
9
9
10
10
11
12
13
14
15
16
17
18
1
Handlebar with U.P.
624685
Not Available
1
Handlebar with U.P.
1B001759
$327,68 Unit Price incl. VAT
2
Hex socket screw
655554
$3,70 Unit Price incl. VAT
3
Flat elastic washer with internal toothing 17x10,3x2
012543
$0,08 Unit Price incl. VAT
4
Flat washer
178790
$0,51 Unit Price incl. VAT
5
Nut M10
015330
$0,25 Unit Price incl. VAT
6
Device port complete gas com. sleeve.
64831100VG
$109,35 Unit Price incl. VAT
6
Device port complete gas com. sleeve.
64831100M5
$109,35 Unit Price incl. VAT
6
Device port complete gas com. sleeve.
64831100M4
$109,35 Unit Price incl. VAT
6
Gas control sleeve with device port.
64831100HF
$109,35 Unit Price incl. VAT
6
Device port complete gas com. sleeve.
6483110090
Not Available
7
Throttle opening transmission
648173
$74,25 Unit Price incl. VAT
8
Complete right hand grip
648551
$22,29 Unit Price incl. VAT
9
Anti vib.weight trailing
673243
$24,38 Unit Price incl. VAT
10
Countersunk-head screw
653019
$3,65 Unit Price incl. VAT
11
Front master cilinder
CM074908
$153,90 Unit Price incl. VAT
11
Front master cilinder
CM080801
Not Available
12
Brake lever
497042
$18,36 Unit Price incl. VAT
12
(Heng Tong) Right brake lever
648378
$41,85 Unit Price incl. VAT
13
Rear master cylinder
CM074807
$180,90 Unit Price incl. VAT
13
Rear master cylinder
CM079901
$156,60 Unit Price incl. VAT
14
Brake lever
497042
$18,36 Unit Price incl. VAT
14
(Heng Tong) Right brake lever
648378
$41,85 Unit Price incl. VAT
15
Collar
582828
$4,82 Unit Price incl. VAT
16
Complete left hand grip
648550
$22,29 Unit Price incl. VAT
17
RH pump cover
667198
$56,87 Unit Price incl. VAT
17
RH pump cover
1C001257
$56,87 Unit Price incl. VAT
18
LH pump cover
667199
$56,87 Unit Price incl. VAT
18
LH pump cover
1C001256
$56,87 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
