1
Engine displacement
250
2
Model
GTV
3
Year
2008
4
Trim
GTV ie
5
Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
Remote control switches - Battery - Horn
by
Helmet huosing - Undersaddle
Cooling system
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30
31
31
32
33
33
34
34
34
34
35
35
35
35
36
37
37
37
37
38
39
40
41
41
1
RADIATORE ACQUA
577183
$50,73 Unit Price incl. VAT
2
DADO AUTOFRENANTE
241936
$0,08 Unit Price incl. VAT
3
VITE AUTOFIL. TBCIC 3,8x16
270793
$0,08 Unit Price incl. VAT
4
ELETTROVENTOLA
584669
$76,39 Unit Price incl. VAT
5
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
6
VITE METRICA CON INT.A CROCE M6x16.
272836
$3,70 Unit Price incl. VAT
7
Coolant tank
624402
Not Available
8
TAPPO SERB.LIQUIDO RAF
623673
$15,97 Unit Price incl. VAT
9
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
10
VITE
257404
$2,95 Unit Price incl. VAT
11
TUBO COLL.RADIATORE
57313R
$26,74 Unit Price incl. VAT
12
pipe
577436
Not Available
13
STAFFA SOSTEGNO RACCORDO
624702
$6,30 Unit Price incl. VAT
14
TUBO RACCORDO SUPP.CENTRALE
624703
$35,51 Unit Price incl. VAT
15
TERMOINTERRUTTORE
640017
$17,83 Unit Price incl. VAT
16
CONVOGLIATORE ARIA SX
577187
$15,22 Unit Price incl. VAT
17
CONVOGLIATORE ARIA DX
622839
$15,22 Unit Price incl. VAT
18
TUBO COLL.RADIATORE
577201
$26,74 Unit Price incl. VAT
19
TUBO COLL.RADIATORE-RACCORDO SX
577384
$8,91 Unit Price incl. VAT
20
Lower joint pipe
623749
Not Available
21
TUBO COLL.RACCORDO-VASO ESPANSIONE
577433
$5,38 Unit Price incl. VAT
22
TUBO COLLEGAMENTO RACCORDO-TESTA
653501
$31,97 Unit Price incl. VAT
23
TUBO COLL.RADIATORE-RACCORDO SX
623013
$5,38 Unit Price incl. VAT
24
Cover complete joint
623438
Not Available
25
GUARNIZIONE INIETTORE
168077
$3,65 Unit Price incl. VAT
26
TAPPO M14X1,5
621365
$4,82 Unit Price incl. VAT
27
Thermal switch joint
949625
$5,38 Unit Price incl. VAT
28
Guard
580160
Not Available
29
RACCORDO
577195
$8,16 Unit Price incl. VAT
30
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
31
VITE METRICA CON CODOLO
575249
$0,66 Unit Price incl. VAT
32
FASCETTA STRINGITUBO
CM001903
$0,84 Unit Price incl. VAT
33
FASCETTA STRINGITUBO
CM001904
$0,75 Unit Price incl. VAT
34
FASCETTA STRINGITUBO
CM001905
$1,38 Unit Price incl. VAT
35
FASCETTA STRINGITUBO
CM001907
$0,84 Unit Price incl. VAT
36
FASCETTA STRINGITUBO(D.30,8 S.0,6 L.7)
CM001908
$3,65 Unit Price incl. VAT
37
FASCETTA STRINGITUBO (D.28,6 S.0,6 L.7)
CM001915
$1,03 Unit Price incl. VAT
38
MOLLETTA RITEGNO TUBI
CM006903
$1,43 Unit Price incl. VAT
39
FASCETTA STRINGITUBO (D.30,1 S.0,6 L.7)
CM001922
$3,65 Unit Price incl. VAT
40
RONDELLA ELAST.ONDULATA (D15 F8,6)
709047
$0,08 Unit Price incl. VAT
41
FASCETTA A STRAPPO
145298
$0,08 Unit Price incl. VAT

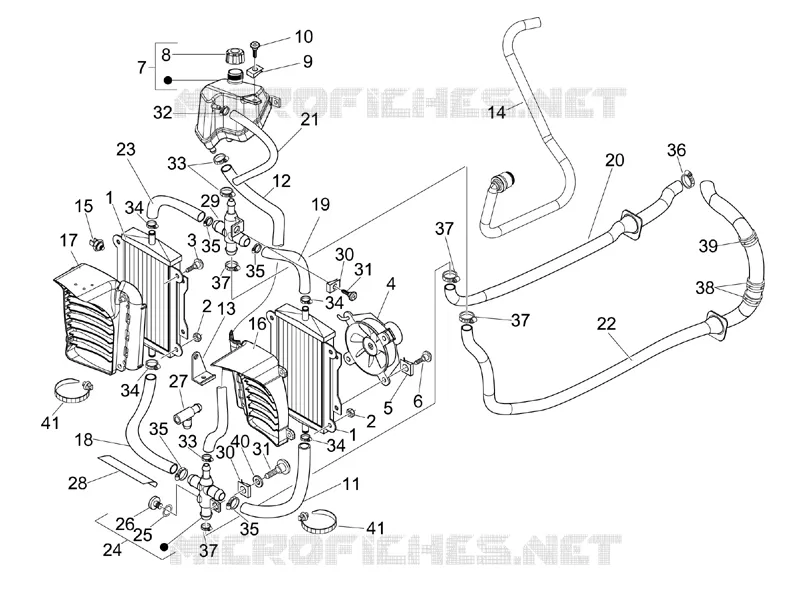

Find the detailed Cooling system GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
