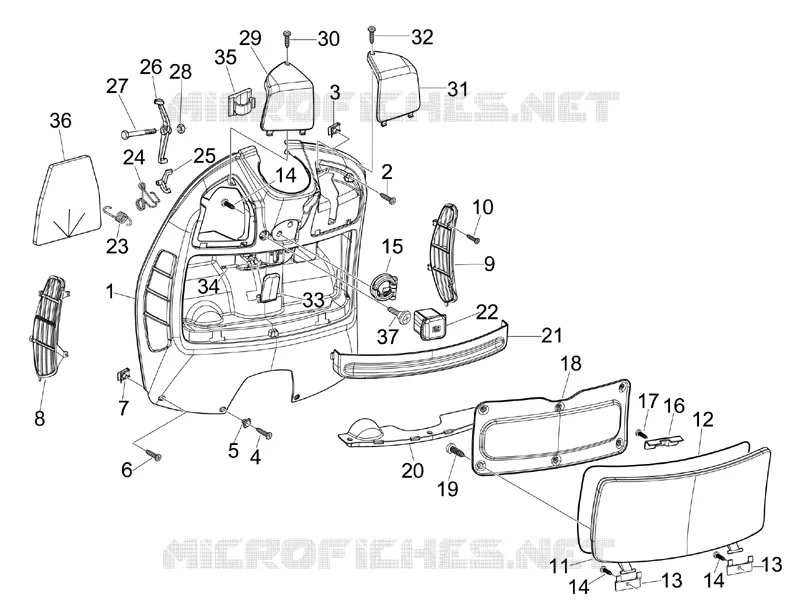

Front glove-box - Knee-guard panel FOR GTS ie Super Sport FROM 2011

Crankcase cover - Crankcase cooling

Front headlamps - Turn signal lamps

Front glove-box - Knee-guard panel

1

Front glove comp.

57717400M5

Not Available

1

Front glove comp.

577174

Not Available

1

Front glove comp.

57717400H8

Not Available

2

screw 4,2x19

258249

$0,09 Unit Price incl. VAT

3

Plate

CM017408

$0,25 Unit Price incl. VAT

4

Self tapping screw D4.2x16

CM178601

$0,16 Unit Price incl. VAT

5

Expansion plug

199190

$2,95 Unit Price incl. VAT

6

Screw M4,2x13

259349

$0,17 Unit Price incl. VAT

7

Spring plate

CM017410

$0,34 Unit Price incl. VAT

8

Net panel (l)

577856000C

Not Available

9

Net panel (r)

577857000C

$24,90 Unit Price incl. VAT

10

Plug screw

268596

$0,08 Unit Price incl. VAT

11

Glove compartment door

577175

$149,25 Unit Price incl. VAT

11

Glove compartment door

57717500H8

Not Available

11

Glove compartment door

57717500M5

$185,67 Unit Price incl. VAT

12

Flap packing

CM006311

$7,23 Unit Price incl. VAT

13

Door fixing bracket

257614

$1,09 Unit Price incl. VAT

14

Screw M4,2x13

259349

$0,17 Unit Price incl. VAT

15

Bag holder hook

575819

$12,88 Unit Price incl. VAT

16

Square

252420

$0,59 Unit Price incl. VAT

17

Plug screw

268596

$0,08 Unit Price incl. VAT

18

Counter flap

577468

$27,67 Unit Price incl. VAT

19

Self tapping screw

297498

$0,08 Unit Price incl. VAT

20

paratia interna bauletto

623776

$8,91 Unit Price incl. VAT

21

Rim

577447

$10,76 Unit Price incl. VAT

22

Cover

620452

$5,38 Unit Price incl. VAT

23

Spring

577399

$2,61 Unit Price incl. VAT

24

Spring

577005

Not Available

25

Pawl

575607

$1,35 Unit Price incl. VAT

26

Lock lever

577453

$5,38 Unit Price incl. VAT

27

Special screw

299972

$0,50 Unit Price incl. VAT

28

Self locking nut

577620

$0,08 Unit Price incl. VAT

29

Left flap

577395

Not Available

29

Left flap

577395000C

$15,22 Unit Price incl. VAT

30

Self tapping screw

CM178607

$3,65 Unit Price incl. VAT

31

Right flap

577396000C

$15,22 Unit Price incl. VAT

32

Self tapping screw

CM178607

$3,65 Unit Price incl. VAT

33

Lever

577861

$1,35 Unit Price incl. VAT

34

Pin

577400

$5,38 Unit Price incl. VAT

35

Spring clamp

577594

$0,42 Unit Price incl. VAT

36

Sound proof panel

620693

$7,23 Unit Price incl. VAT

37

Metric screw TBC

575249

$0,66 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
