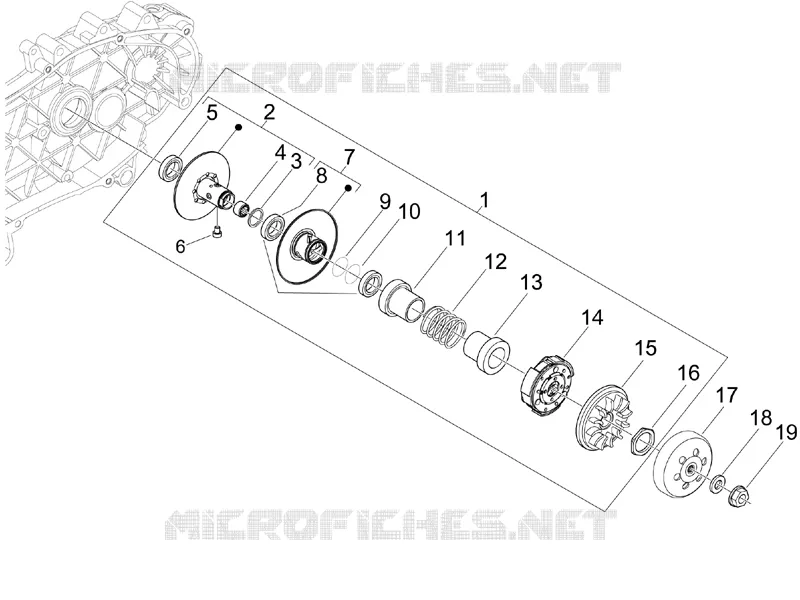

Driven pulley
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Secondary pulley
82881R
Not Available
1
Secondary pulley
CM144134
Not Available
2
Sec. fixed sheave, complete
833669
Not Available
2
Sec. fixed sheave, complete
878647
Not Available
3
Snap ring
483226
$0,72 Unit Price incl. VAT
4
Roller cage 20x29x18
82518R
$12,62 Unit Price incl. VAT
5
Bearing 17x30x7
82753R
$19,17 Unit Price incl. VAT
6
Guide pin L=12,5
828717
$0,34 Unit Price incl. VAT
7
Sec. sliding sheave, complete
878651
Not Available
7
Sec. sliding sheave, complete
841774
Not Available
8
Gasket ring
431089
$2,55 Unit Price incl. VAT
9
Gasket
430585
$4,89 Unit Price incl. VAT
10
O-ring
834044
$3,65 Unit Price incl. VAT
11
Cup
833674
$9,70 Unit Price incl. VAT
12
Variator spring
833673
$8,77 Unit Price incl. VAT
13
Clutch side cap
487936
$5,73 Unit Price incl. VAT
14
Centrifugal clutch assy
8722515
Not Available
15
Fan
482305
$9,99 Unit Price incl. VAT
16
Ring nut
433232
$2,31 Unit Price incl. VAT
17
Clutch drum
8440494
$26,86 Unit Price incl. VAT
18
Flat washer 22x12,1x1
274246
$0,34 Unit Price incl. VAT
19
Nut M12x1.25
486324
$0,50 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
