Main cable harness for GILERA PIAGGIO VESPA GTS ie ABS Super from 2014

Main cable harness

1

GRUPPO CAVETTI TELAIO

1D000414

Not Available

2

MORSETTIERA P/FUSIB.6 VIE

584211

$26,74 Unit Price incl. VAT

3

FUSIBILE LAMELLARE 15A

290860

$5,73 Unit Price incl. VAT

4

FUSIBILE 7,5 A

252945

$0,42 Unit Price incl. VAT

5

FUSIBILE LITTELFUSE VERDE

CM225730

$0,51 Unit Price incl. VAT

6

FASCETTA

640879

$0,92 Unit Price incl. VAT

7

FASCETTA A STRAPPO

145298

$0,08 Unit Price incl. VAT

8

FUSIBILE LAMELLARE 10

292507

$0,42 Unit Price incl. VAT

9

FUSIBILE 20 A.

580561

$0,42 Unit Price incl. VAT

10

CAVO DI MASSA MOTORE

584843

$9,18 Unit Price incl. VAT

11

MOLLETTA PER CONNETTORE

639560

$0,67 Unit Price incl. VAT

12

MOLLETTA RITEGNO TUBI

CM006903

$1,43 Unit Price incl. VAT

13

STAFFA PORTAFUSIBILE

641532

$4,82 Unit Price incl. VAT

14

TAPPO DIAFRAMMA

641547

$17,83 Unit Price incl. VAT

15

MOLLETTA RITEGNO TUBI

CM006902

$0,92 Unit Price incl. VAT

16

MOLLETTA RITEGNO TUBI

CM006904

$0,25 Unit Price incl. VAT

17

PROTEZIONE A = 65

CM077703

$4,32 Unit Price incl. VAT

18

FASCETTA A STRAPPO

145298

$0,08 Unit Price incl. VAT

19

FASCETTA A STRAPPO

257134

$0,25 Unit Price incl. VAT

20

MOLLETTA PER CONNETTORE

641599

$4,82 Unit Price incl. VAT

21

MOLLA PER CONNETTORE

584520

$5,38 Unit Price incl. VAT

22

MOLLETTA RITEGNO TUBI/CAVI

CM013202

$1,10 Unit Price incl. VAT

23

PROTEZIONE BORDO SCOCCA

656656

$6,15 Unit Price incl. VAT

24

MOLLETTA PER CONNETTORE

1D000680

$1,51 Unit Price incl. VAT

25

STAFFA

639843

$6,30 Unit Price incl. VAT

26

VITE AUTOMASC.TESTA ESAG.TRILOBATA

641204

$0,34 Unit Price incl. VAT

27

RONDELLA ELASTICA (6,4X11,8X1)

016406

$0,34 Unit Price incl. VAT

28

RONDELLA PIANA 6,4x12x1

003056

$0,08 Unit Price incl. VAT

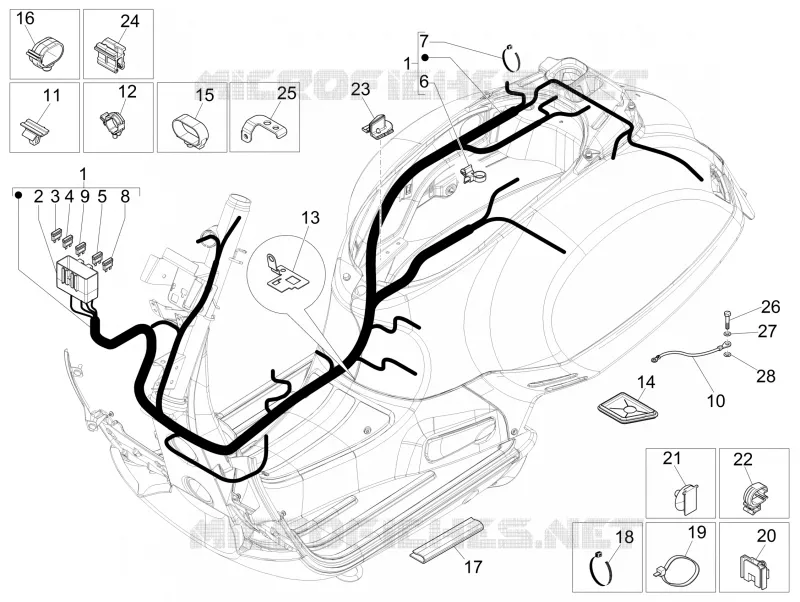

Find the detailed Main cable harness GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
