Rear suspension - Shock absorber/s for GILERA PIAGGIO VESPA GTS ie ABS Super from 2015

Rear suspension - Shock absorber/s

1

Complete rear shock absorber

58503R

Not Available

2

TAMPONE SUPERIORE

178150

$0,92 Unit Price incl. VAT

3

RONDELLA PIANA

267038

$0,67 Unit Price incl. VAT

4

RONDELLA ELASTICA

016408

$0,08 Unit Price incl. VAT

5

DADO ESAGONALE NORMALE

021108

$0,25 Unit Price incl. VAT

6

STAFFA FISS.AMMORTIZZATORE POST.

598143

$5,38 Unit Price incl. VAT

7

BOCCOLA

597149

$3,65 Unit Price incl. VAT

8

VITE A TESTA ESAGONALE FLANG. PAR. FIL.

268158

$1,26 Unit Price incl. VAT

9

DADO AUTOFRENANTE M10

002440

$0,34 Unit Price incl. VAT

10

VITE T.C.E.I. M8X50

844483

$0,67 Unit Price incl. VAT

11

DADO M8-6H

020008

$0,08 Unit Price incl. VAT

12

Right arm

1A001903

Not Available

13

CUSCINETTO RADIALE RIGIDO

82545R

$12,11 Unit Price incl. VAT

14

RONDELLA D30 F10,2 S2

013962

$2,95 Unit Price incl. VAT

15

DADO AUTOFRENANTE M10

002440

$0,34 Unit Price incl. VAT

16

VITE T.C.ESAG.INC.M8x40 UNI 5931-84 8.8

149104

$0,51 Unit Price incl. VAT

17

RONDELLA ELAST.ONDULATA (D15 F8,6)

709047

$0,08 Unit Price incl. VAT

18

RONDELLA PIANA

003058

$0,08 Unit Price incl. VAT

19

ABS sensor

1D0001275

Not Available

20

RONDELLA

669282

$1,43 Unit Price incl. VAT

21

VITE A TESTA ESAGONALE FLANGIATA

830061

$0,34 Unit Price incl. VAT

22

FASCETTA A STRAPPO

145298

$0,08 Unit Price incl. VAT

23

FASCETTA

643413

$3,65 Unit Price incl. VAT

24

RONDELLA ONDULATA (5,3X10X0,5)

006975

$0,17 Unit Price incl. VAT

25

FASCETTA A STRAPPO

145298

$0,08 Unit Price incl. VAT

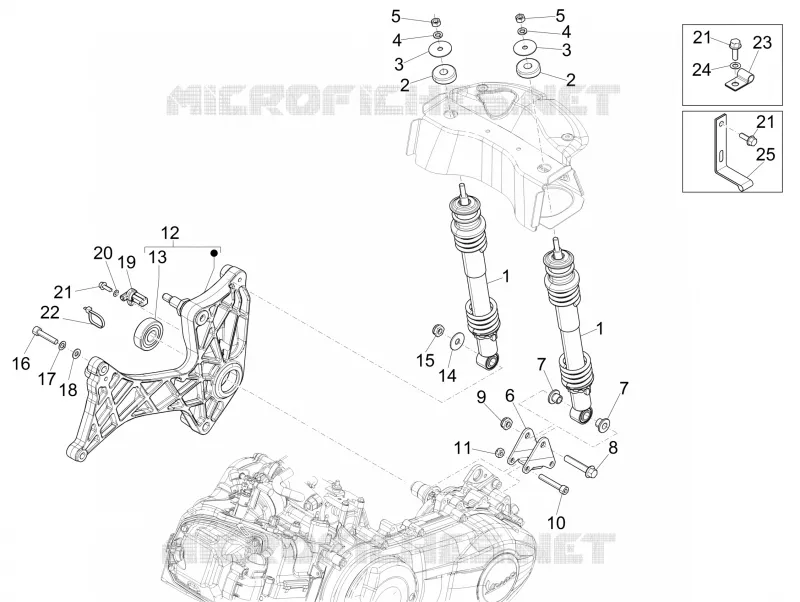

Find the detailed Rear suspension - Shock absorber/s GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
