1
Engine displacement
300
2
Model
GTS
3
Year
2017
4
Trim
GTS ie ABS E4
5
Parts Catalog
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
6
Parts Diagram
Parts Catalog
Brakes pipes - Calipers (ABS)
by
Stand/s

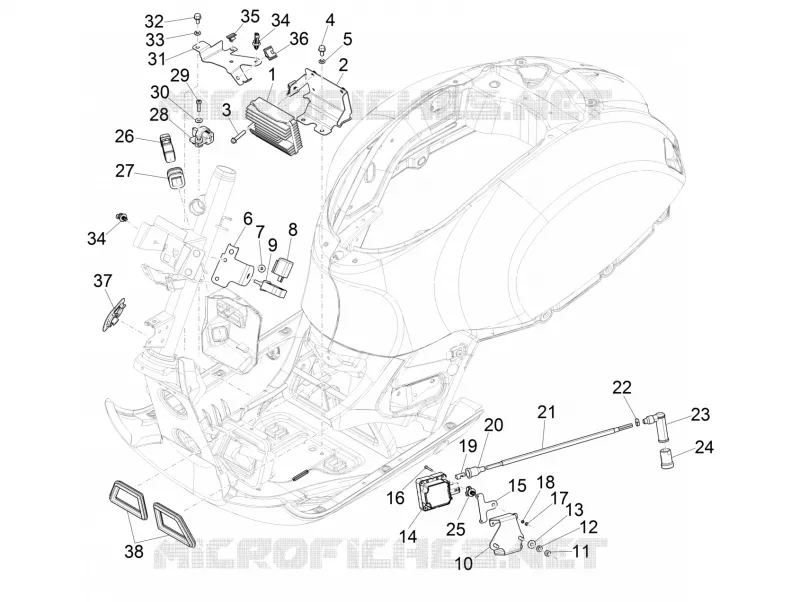

Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
34
35
36
37
38
1
Voltage regulator
641709
$310,50 Unit Price incl. VAT
2
Voltage regulator support
1B003878
$17,07 Unit Price incl. VAT
3
Screw w/ flange M6x30
B016792
$0,25 Unit Price incl. VAT
4
Screw w/ flange M6x14
B016426
$0,42 Unit Price incl. VAT
5
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
6
Bulb device bracket
1D000504
$8,16 Unit Price incl. VAT
7
Nut
969224
$0,42 Unit Price incl. VAT
8
Turn indicator control
680228
$26,65 Unit Price incl. VAT
9
Flexible support
291017
$4,88 Unit Price incl. VAT
10
AT coil support bracket
641105
$8,16 Unit Price incl. VAT
11
Nut M6
020106
$0,08 Unit Price incl. VAT
12
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
13
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
14
HT coil
58120R
$65,76 Unit Price incl. VAT
15
Bracket
1D001721
$4,62 Unit Price incl. VAT
16
screw M3x20
583236
$3,70 Unit Price incl. VAT
17
Washer 3.2x5.7x0.9
012554
$1,56 Unit Price incl. VAT
18
Nut M 3
020003
$2,27 Unit Price incl. VAT
19
End cap
015014
$4,82 Unit Price incl. VAT
20
Insulating cap
071671
$1,29 Unit Price incl. VAT
21
H.V. cable
080341
$5,89 Unit Price incl. VAT
22
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
23
Screened cap
969348
$8,17 Unit Price incl. VAT
24
Spark.plug protection clamp
641643
$4,82 Unit Price incl. VAT
25
Wiring clip
1D001143
$0,34 Unit Price incl. VAT
26
USB port
1D001377
Not Available
27
Fairlead
1B001591
$1,56 Unit Price incl. VAT
28
Fall sensor
680071
$40,43 Unit Price incl. VAT
29
screw M5x21
015856
$0,16 Unit Price incl. VAT
30
Flat washer Ø5,3xØ14x1
097733
$3,65 Unit Price incl. VAT
31
Connectors support bracket
1B003943
$6,30 Unit Price incl. VAT
32
Screw w/ flange M6x14
B016426
$0,42 Unit Price incl. VAT
33
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
34
Wiring clip
1D001143
$0,34 Unit Price incl. VAT
35
Spring for connector
639560
$0,67 Unit Price incl. VAT
36
Plugs spring
641599
$4,82 Unit Price incl. VAT
37
RH frame protection
1B003939
$6,15 Unit Price incl. VAT
38
Diaphragm protection
1B003958
$5,38 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
