Parts Catalog
Rear cover - Splash guard
6

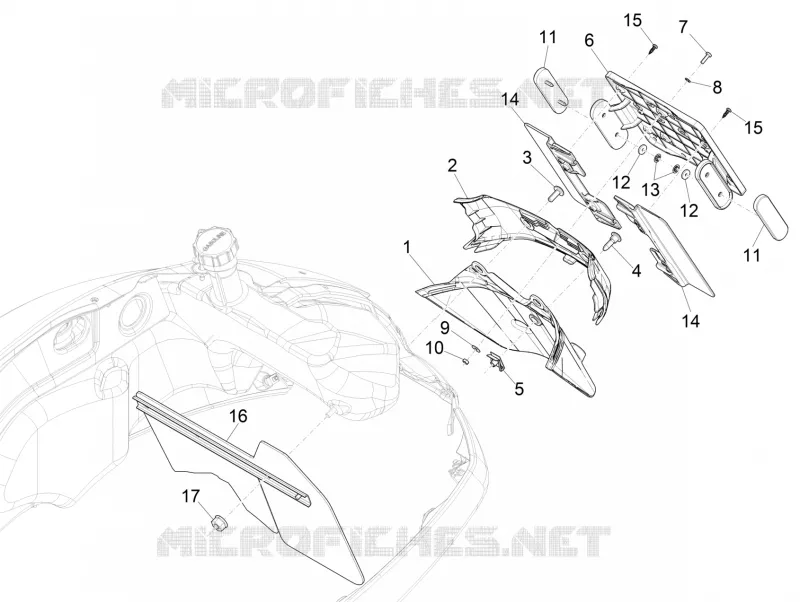

Parts Diagram
Parts Catalog
Front luggage rack
by
Cylinder-piston-wrist pin unit
Rear cover - Splash guard
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
14
14
15
15
16
17
1
Rear splash guard
1B0008830000C
$24,90 Unit Price incl. VAT
2
Splash guard upper closing
1B000881000YR5
$33,81 Unit Price incl. VAT
2
Splash guard upper closing
1B000881000HA
$33,81 Unit Price incl. VAT
2
Splash guard upper closing
1B000881000Q7
$33,81 Unit Price incl. VAT
2
Splash guard upper closing
1B00088100090
$33,81 Unit Price incl. VAT
2
Splash guard upper closing
1B000881000L7
$33,81 Unit Price incl. VAT
2
Splash guard upper closing
1B000881000BR
$33,81 Unit Price incl. VAT
2
Splash guard upper closing
1B000881
$25,82 Unit Price incl. VAT
2
Splash guard upper closing
1B000881000HQ
$33,81 Unit Price incl. VAT
2
Splash guard upper closing
1B000881000R7
$33,81 Unit Price incl. VAT
2
Splash guard upper closing
1B000881000MD
$33,81 Unit Price incl. VAT
2
Splash guard upper closing
1B000881000VU
$31,97 Unit Price incl. VAT
2
Splash guard upper closing
1B000881000XN2
$33,81 Unit Price incl. VAT
2
Splash guard upper closing
1B000881000T8
$33,81 Unit Price incl. VAT
3
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
4
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
5
Spring plate M6
254485
$0,34 Unit Price incl. VAT
6
Number plate holder
1B003614
Not Available
7
Screw M4x12
015996
$0,08 Unit Price incl. VAT
8
Flat washer 4,2x7,6x0,9
016404
$0,42 Unit Price incl. VAT
9
Flat washer 4,2x12x1
013763
$0,08 Unit Price incl. VAT
10
Nut M4
020104
$1,26 Unit Price incl. VAT
11
Screw M6x16
272836
$3,70 Unit Price incl. VAT
11
Rear retroreflector
58233R5
$2,60 Unit Price incl. VAT
12
Spacer
479882
$0,67 Unit Price incl. VAT
13
Spring plate
181351
$0,17 Unit Price incl. VAT
14
Number-plate extension
1B003615
$2,76 Unit Price incl. VAT
15
Plug screw
268596
$0,08 Unit Price incl. VAT
16
Splash guard
620236
$17,07 Unit Price incl. VAT
17
Self locking nut M6
288245
$0,16 Unit Price incl. VAT
