1
Engine displacement
300
2
Model
GTS
3
Year
2015
4
Trim
GTS ie ABS
5
Parts Catalog
Head unit - Valve
6
Parts Diagram
Parts Catalog
Cooler pump
by
Air filter
Head unit - Valve
1
2
3
4
5
6
6
7
7
8
8
9
9
10
10
11
12
13
14
15
16
17
18
19
20
21
1
Complete cylinder head leader 300cc.
8800501
Not Available
2
PRIGIONIERO SPECIALE
435629
$0,67 Unit Price incl. VAT
3
GUARNIZIONE SCARICO K8
480853
$4,89 Unit Price incl. VAT
4
Exhaust valve
873009
Not Available
5
Intake valve
872999
Not Available
6
SCODELLINO INFERIORE
483711
$1,35 Unit Price incl. VAT
7
ANELLO DI TENUTA VALVOLA K8
436438
$1,34 Unit Price incl. VAT
8
MOLLA VALVOLA
828480
$2,25 Unit Price incl. VAT
9
SCODELLINO SUPERIORE
483914
$0,91 Unit Price incl. VAT
10
SEMICONI
285846
$2,94 Unit Price incl. VAT
11
Plug
877432
Not Available
12
DADO M8X1.25 (CH.12)
411296
$0,50 Unit Price incl. VAT
13
VITE ESAGONALE FLANGIATA M6X112,5
B016807
$1,26 Unit Price incl. VAT
14
Temperature gauge
640485
Not Available
15
COPERCHIO TERMOSTATO COMPLETO
B018147
$38,43 Unit Price incl. VAT
16
CAPPUCCIO SPURGO
063435
$0,34 Unit Price incl. VAT
17
VITE DI SPURGO
845605
$3,21 Unit Price incl. VAT
18
ANELLO O.R.
297027
$1,10 Unit Price incl. VAT
19
VITE A TESTA BOMBATA TORX M5X20
B016808
$0,20 Unit Price incl. VAT
20
Thermostat
82831R
Not Available
21
Cylinder head gasket 0,3 mm
848168
Not Available

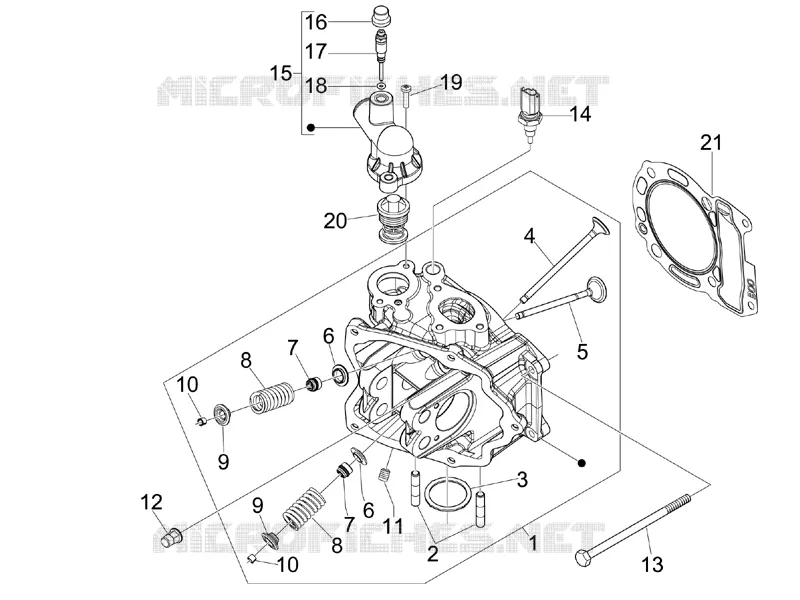

Find the detailed Head unit - Valve GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
