Brakes pipes - Calipers for GILERA PIAGGIO VESPA GTS ie from 2015

Brakes pipes - Calipers

1

Brake caliper Heng Tong

CM068301

Not Available

1

PINZA FRENO

CM068320

$132,30 Unit Price incl. VAT

2

COPPIA PASTICCHE FRENO

668021

$105,58 Unit Price incl. VAT

2

COPPIA PASTICCHE FRENO

651253

$47,93 Unit Price incl. VAT

3

PERNO

666139

$7,56 Unit Price incl. VAT

4

VITE TCEI M8X18

319532

$3,65 Unit Price incl. VAT

5

RONDELLA ELAST.ONDULATA (D15 F8,6)

709047

$0,08 Unit Price incl. VAT

6

RONDELLA PIANA

003058

$0,08 Unit Price incl. VAT

7

TUBAZIONE IDRAUL.FRENO ANT.

597856

$62,52 Unit Price incl. VAT

8

VITE ESP.TE M10X18

265451

$9,25 Unit Price incl. VAT

9

RONDELLA

127927

$0,25 Unit Price incl. VAT

10

Pinza freno Heng Tong

CM074101

$86,40 Unit Price incl. VAT

11

COPPIA PASTICCHE FRENO

647161

$36,45 Unit Price incl. VAT

12

VITE T.C.ESAG.INC.M8x40 UNI 5931-84 8.8

149104

$0,51 Unit Price incl. VAT

13

RONDELLA ELAST.ONDULATA (D15 F8,6)

709047

$0,08 Unit Price incl. VAT

14

TUBAZIONE IDRAULICA FRENO POST. FLESS.

667312

$126,02 Unit Price incl. VAT

15

MOLLETTA RITEGNO TUBI/CAVI

CM006907

$1,51 Unit Price incl. VAT

16

FASCETTA A STRAPPO

257134

$0,25 Unit Price incl. VAT

17

FASCETTA A STRAPPO

145298

$0,08 Unit Price incl. VAT

18

Hose clamp

217280

Not Available

19

STAFFA CON P.I.

649635

$6,30 Unit Price incl. VAT

20

VITE METRICA CON INT.A CROCE M6x16.

272836

$3,70 Unit Price incl. VAT

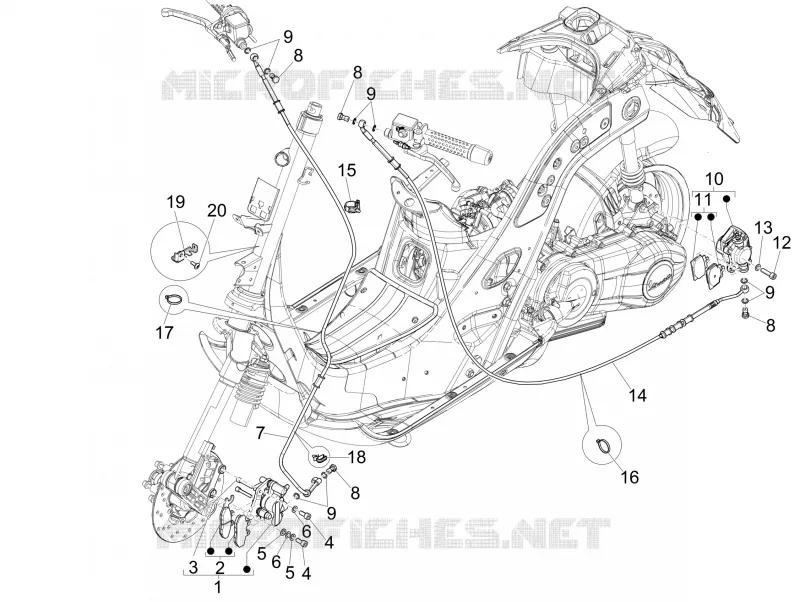

Find the detailed Brakes pipes - Calipers GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
