Fuel tank for GILERA PIAGGIO VESPA GTS ie from 2016

Fuel tank

1

Fuel tank

621582

Not Available

2

VITE TE M6x20

018639

$0,16 Unit Price incl. VAT

3

VITE (M6X35)

414838

$0,67 Unit Price incl. VAT

4

RONDELLA ELASTICA (6,4X11,8X1)

016406

$0,34 Unit Price incl. VAT

5

RONDELLA PIANA METALLICA

013880

$0,08 Unit Price incl. VAT

6

DISTANZIALE

623162

$0,50 Unit Price incl. VAT

7

PIASTRINA ELASTICA M6

254485

$0,34 Unit Price incl. VAT

8

GUARNIZIONE SERBATOIO ESP.

620737

$4,82 Unit Price incl. VAT

9

TAPPO COMPLETO

656022

$8,74 Unit Price incl. VAT

9

TAPPO SERBATOIO COMPLETO

259832

$1,10 Unit Price incl. VAT

10

GUARNIZIONE TAPPO SERBATOIO

656021

$8,66 Unit Price incl. VAT

10

GUARNIZIONE

258160

$1,00 Unit Price incl. VAT

11

Indicator fuel level

CM025707

$86,99 Unit Price incl. VAT

12

GRUPPO POMPA COMPLETO

643034

$456,49 Unit Price incl. VAT

13

Gasket

576542

Not Available

14

GHIERA SERRAGGIO POMPA

576546

$4,71 Unit Price incl. VAT

15

TUBO CARBURANTE COMPLETO

1B001175R

$55,19 Unit Price incl. VAT

15

TUBO MANDATA CARB.COMPL.DI RACCORDI

621146

$74,70 Unit Price incl. VAT

15

TUBO CARBURANTE COMPLETO DYTECH

1B001177

$44,66 Unit Price incl. VAT

16

FASCETTA

573918

$1,09 Unit Price incl. VAT

17

DADO SERRAGGIO

969224

$0,42 Unit Price incl. VAT

18

FASCETTA CON MANICOTTO IN GOMMA

675510

$1,80 Unit Price incl. VAT

19A

TUBO SFIATO D.5X10 L.1060

CM001432

$11,50 Unit Price incl. VAT

19B

TUBO SFIATO COMPLETO

1B001467

Not Available

20

FASCETTA STRINGITUBO

CM001914

$0,75 Unit Price incl. VAT

21

VALVOLA DI SICUREZZA

576748

$28,44 Unit Price incl. VAT

22

FASCETTA STRINGITUBO

CM001914

$0,75 Unit Price incl. VAT

23

MOLLETTA RITEGNO TUBI

CM013201

$0,40 Unit Price incl. VAT

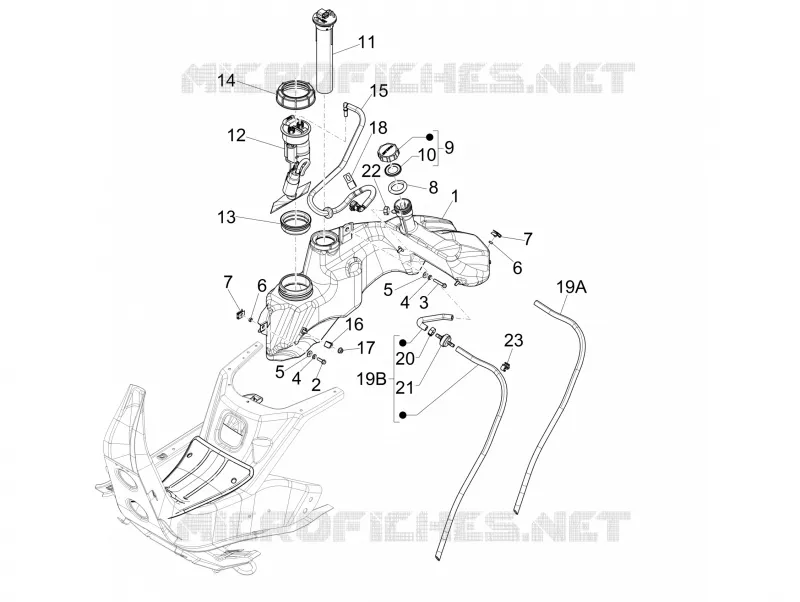

Find the detailed Fuel tank GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
