Fuel tank for GILERA PIAGGIO VESPA GTS ie from 2013

Fuel tank

1

Fuel tank

656010

Not Available

2

VITE TE M6x20

018639

$0,16 Unit Price incl. VAT

3

VITE (M6X35)

414838

$0,67 Unit Price incl. VAT

4

RONDELLA ELASTICA (6,4X11,8X1)

016406

$0,34 Unit Price incl. VAT

5

RONDELLA PIANA METALLICA

013880

$0,08 Unit Price incl. VAT

6

PIASTRINA ELASTICA M6

254485

$0,34 Unit Price incl. VAT

7

DISTANZIALE

623162

$0,50 Unit Price incl. VAT

8

GUARNIZIONE SERBATOIO ESP.

620737

$4,82 Unit Price incl. VAT

9

TAPPO COMPLETO

656022

$8,74 Unit Price incl. VAT

10

GUARNIZIONE TAPPO SERBATOIO

656021

$8,66 Unit Price incl. VAT

11

Indicator fuel level

CM025707

$86,99 Unit Price incl. VAT

12

TUBO SFIATO D.5X10 L.1060

CM001432

$11,50 Unit Price incl. VAT

13

MOLLETTA RITEGNO TUBI

CM013201

$0,40 Unit Price incl. VAT

14

Complete fuel pump assembly

640516

Not Available

15

GHIERA SERRAGGIO POMPA

576546

$4,71 Unit Price incl. VAT

16

Gasket

576542

Not Available

17

TUBO MANDATA CARB.COMPL.DI RACCORDI

654222

$66,71 Unit Price incl. VAT

18

FASCETTA

573918

$1,09 Unit Price incl. VAT

19

DADO SERRAGGIO

969224

$0,42 Unit Price incl. VAT

20

Hose clamp

623743

Not Available

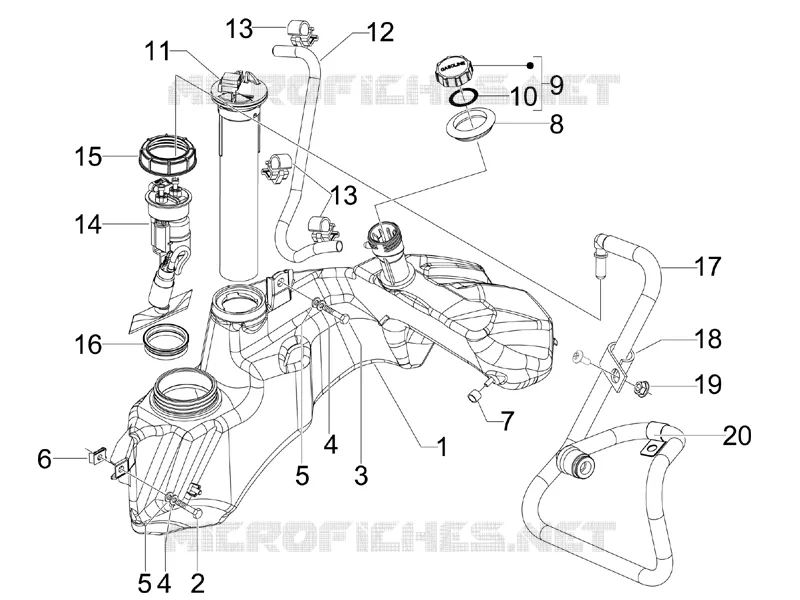

Find the detailed Fuel tank GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
