Cooler pump for GILERA PIAGGIO VESPA GTS ie from 2011

Cooler pump

1

COPERCHIO POMPA "H2O" CON P.I.

877528

$14,43 Unit Price incl. VAT

2

VITE TCCIC M5X22 (5.8)

828662

$0,25 Unit Price incl. VAT

3

O.R. COPERCHIO POMPA

485080

$0,72 Unit Price incl. VAT

4

TUBO MANDATA AL CILINDRO

878626

$5,38 Unit Price incl. VAT

5

TUBO ACQUA "BY-PASS"

878940

$5,38 Unit Price incl. VAT

5

By-pass pipe

847718

Not Available

6

FASCETTA STRINGITUBO (D.30,1 S.0,6 L.7)

CM001922

$3,65 Unit Price incl. VAT

7

FASCETTA STRINGITUBO

CM001904

$0,75 Unit Price incl. VAT

8

MOLLA TRASCINAMENTO GIUNTO

842390

$0,48 Unit Price incl. VAT

9

FASCETTA A STRAPPO

145298

$0,08 Unit Price incl. VAT

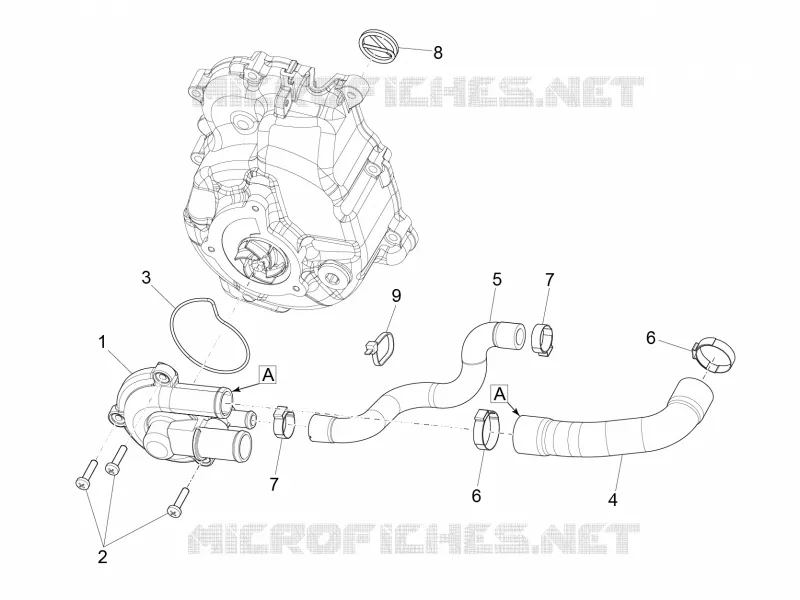

Find the detailed Cooler pump GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
