1
Engine displacement
250
2
Model
GTS
3
Year
2011
4
Trim
GTS ie
5
Parts Catalog

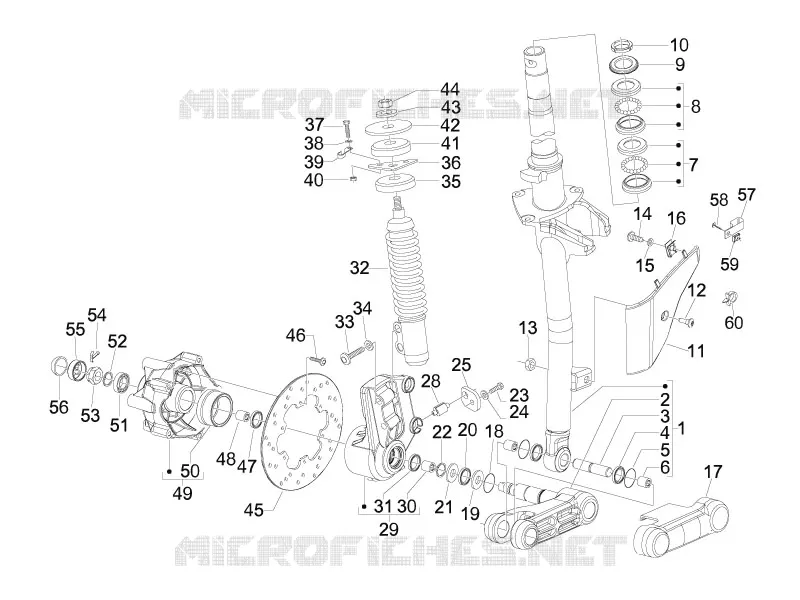

Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Crankshaft
by
Driven pulley
Fork/steering tube - Steering bearing unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
1
Arm complete steering tube
1U0000765
Not Available
2
Left suspension arm
6483975
$109,60 Unit Price incl. VAT
3
Piston pin
177451
$3,03 Unit Price incl. VAT
4
Gasket ring
119219
$0,67 Unit Price incl. VAT
5
Gasket
006731
$0,34 Unit Price incl. VAT
6
Roller cage
198513
$5,97 Unit Price incl. VAT
7
Lower steering bearing
650075
Not Available
8
Upper thrust ring
650693
Not Available
9
Steering security plate
582787
$3,65 Unit Price incl. VAT
10
Steering tube ring nut
0111094
$2,60 Unit Price incl. VAT
11
Front suspension cover
649876
Not Available
12
Metric screw TBC
259348
$2,99 Unit Price incl. VAT
13
Nut
969224
$0,42 Unit Price incl. VAT
14
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
15
Washer
012528
$0,34 Unit Price incl. VAT
16
Spring plate
CM017410
$0,34 Unit Price incl. VAT
17
Front suspension arm cover
561433
Not Available
18
O-ring
177408
$0,08 Unit Price incl. VAT
19
Washer
177445
$0,34 Unit Price incl. VAT
20
Ring
177521
$0,66 Unit Price incl. VAT
21
Washer
177414
$0,75 Unit Price incl. VAT
22
Circlip
006422
$0,16 Unit Price incl. VAT
23
screw M5x16
031058
$2,95 Unit Price incl. VAT
24
Washer Ø5,3xØ10x0,5
006975
$0,17 Unit Price incl. VAT
28
Pinion
267819
$7,69 Unit Price incl. VAT
29
Maintenance
597758
$59,64 Unit Price incl. VAT
30
Drawn cap
177436
$9,18 Unit Price incl. VAT
31
Ring
177494
$1,85 Unit Price incl. VAT
32
Complete front shock absorber
56286R
$85,05 Unit Price incl. VAT
33
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
34
Spring washer
709047
$0,08 Unit Price incl. VAT
35
Pad
174874
$2,36 Unit Price incl. VAT
36
Bracket
273693
$7,23 Unit Price incl. VAT
37
Hex screw M8x22
031119
$3,65 Unit Price incl. VAT
38
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
39
Hose clamp
598134
$3,65 Unit Price incl. VAT
40
Nut M8x6,5
020108
$0,08 Unit Price incl. VAT
41
Pad
174085
$1,18 Unit Price incl. VAT
42
Washer
174088
$0,84 Unit Price incl. VAT
43
Washer
012535
$0,08 Unit Price incl. VAT
44
Nut
021210
$0,16 Unit Price incl. VAT
45
Brake disc
56484R
$35,10 Unit Price incl. VAT
46
Hex socket screw M6x20
667152
$0,26 Unit Price incl. VAT
47
Gasket ring
177443
$1,77 Unit Price incl. VAT
48
Roller cage
177442
$4,04 Unit Price incl. VAT
49
Hub
598654
$218,41 Unit Price incl. VAT
50
Ring gear counts Km socket
267818
$33,03 Unit Price incl. VAT
51
Bearing
177610
$8,41 Unit Price incl. VAT
52
Snap ring
006635
$0,25 Unit Price incl. VAT
53
Nut
021114
$0,51 Unit Price incl. VAT
54
Split pin
012789
$0,16 Unit Price incl. VAT
55
Cap
177609
$2,19 Unit Price incl. VAT
56
Cover
092517
Not Available
57
Hose clamp
271477
$3,65 Unit Price incl. VAT
58
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
59
Spring plate
CM017410
$0,34 Unit Price incl. VAT
60
Elastic spring
231590
$0,25 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
