1
Engine displacement
50
2
Model
FLY
3
Year
2014
4
Trim
Fly 4T 4V
5
Parts Catalog
Oil pump
6
Parts Diagram
Parts Catalog
Driven pulley
by
Front wheel
Oil pump
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
19
20
20
21
21
22
22
23
24
24
25
26
27
28
29
30
1
Oil pump assy.
877262
$19,50 Unit Price incl. VAT
2
Screw w/ flange
433477
$0,19 Unit Price incl. VAT
3
Carter-oil pump gasket
436751
$4,89 Unit Price incl. VAT
4
O-ring 12,42x1
434947
$2,99 Unit Price incl. VAT
5
Oil pump gear
287913
$6,47 Unit Price incl. VAT
6
Belleville spring Ø6,4xØ20x2
436695
$0,59 Unit Price incl. VAT
7
Screw w/ flange M6x14
833722
Not Available
8
Oil pump chain
434447
$11,51 Unit Price incl. VAT
9
Motor oil cup
844871
$16,21 Unit Price incl. VAT
10
Screw w/ flange M6x25
B016774
$0,34 Unit Price incl. VAT
11
Retainer clamp
487824
$0,33 Unit Price incl. VAT
12
Sump gasket
969132
$1,35 Unit Price incl. VAT
13
Oil level rod cpl.
844721
$2,69 Unit Price incl. VAT
14
O-ring
479986
Not Available
15
Timing system cover cpl.
478324
$34,40 Unit Price incl. VAT
16
Oil pump chain drift
434345
$2,77 Unit Price incl. VAT
17
Gasket ring
2879633
$9,33 Unit Price incl. VAT
18
Gasket ring
844888
$3,70 Unit Price incl. VAT
19
Screw w/ flange
484123
$0,16 Unit Price incl. VAT
20
Oil pump control pinion
833495
$361,56 Unit Price incl. VAT
21
Washer
430535
$3,70 Unit Price incl. VAT
22
Timing system chain pinion cpl
969747
Not Available
23
Sliding block
969877
$7,23 Unit Price incl. VAT
24
Camshaft chain
96933R
$42,47 Unit Price incl. VAT
25
Chain tensioner rod
828561
$22,11 Unit Price incl. VAT
26
Hex screw M6x18
031089
$2,99 Unit Price incl. VAT
27
Spacer
478247
Not Available
28
Complete chain tensioner
82650R
$34,52 Unit Price incl. VAT
29
Screw w/ flange M6x14
833722
Not Available
30
Guarnizione cilindro/tendicatena
847928
$0,42 Unit Price incl. VAT

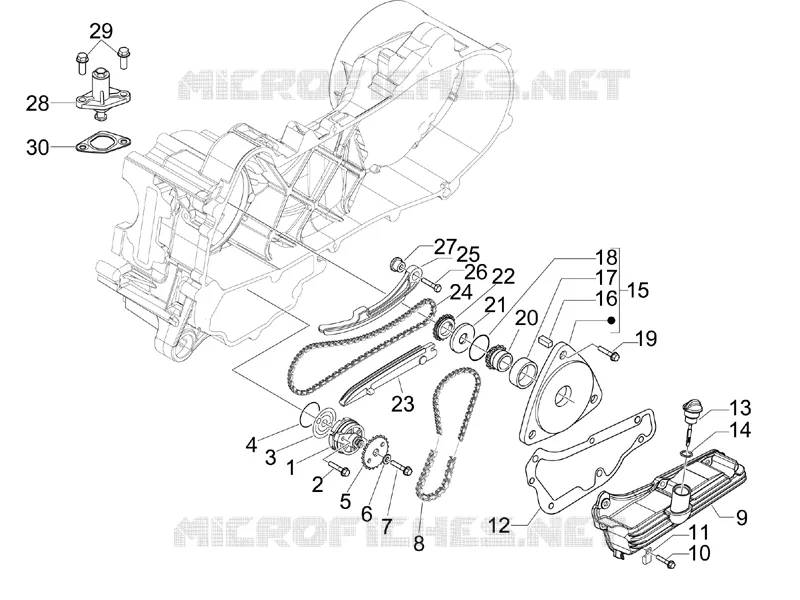

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
