Parts Catalog

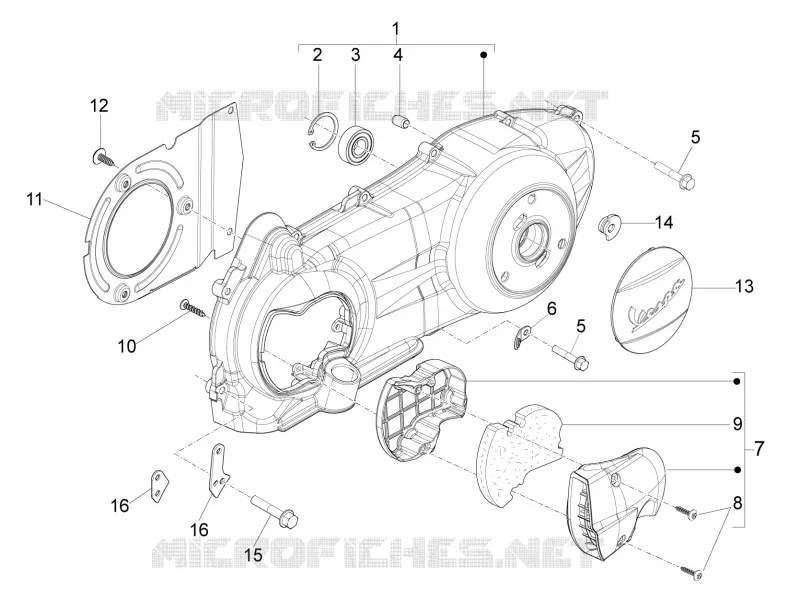

Crankcase cover - Crankcase cooling
6
Parts Diagram
Parts Catalog
Air filter
by
Stater - Electric starter
Crankcase cover - Crankcase cooling
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
16
1
COPERCHIO TRASMISSIONE CON P.I.
8714725
$258,52 Unit Price incl. VAT
2
ANELLO ELASTICO
006635
$0,25 Unit Price incl. VAT
3
Bearing
478985
Not Available
4
Pin 6,5x9,5x15
239388
Not Available
5
VITE ESAGONALE FLANGIATA M6x30
B016792
$0,25 Unit Price incl. VAT
6
FASCETTA
844964
$0,25 Unit Price incl. VAT
7
COPERCHIO RAFFREDDAMENTO
842090
$5,06 Unit Price incl. VAT
8
VITE AUTOFILETTANTE (3X20)
258146
$0,25 Unit Price incl. VAT
9
ELEMENTO FILTRANTE
842093
$0,92 Unit Price incl. VAT
10
VITE AUTOFIL. TBCIC 3,8x16
270793
$0,08 Unit Price incl. VAT
11
DEVIATORE ARIA COMPL.
834266
$4,30 Unit Price incl. VAT
12
VITE TBC M5X10
430264
$2,99 Unit Price incl. VAT
13
COPERCHIETTO COP.TRASMISS."VESPA"
CM155106
$11,00 Unit Price incl. VAT
14
TAMPONE DI RITEGNO
871458
$1,09 Unit Price incl. VAT
15
VITE ESAGONALE FLANGIATA M6x30
B016792
$0,25 Unit Price incl. VAT
16
PIASTRINA FISS.COPERCHIO TRASMISSIONE
622948
$4,82 Unit Price incl. VAT
16
PIASTRINA
872493
$3,65 Unit Price incl. VAT

Find the detailed Crankcase cover - Crankcase cooling GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
