1
Engine displacement
250
2
Model
GTS
3
Year
2006
4
Trim
GTS ABS
5
Parts Catalog
Swinging arm
6
Parts Diagram
Parts Catalog
Stater - Electric starter
by
Silencer

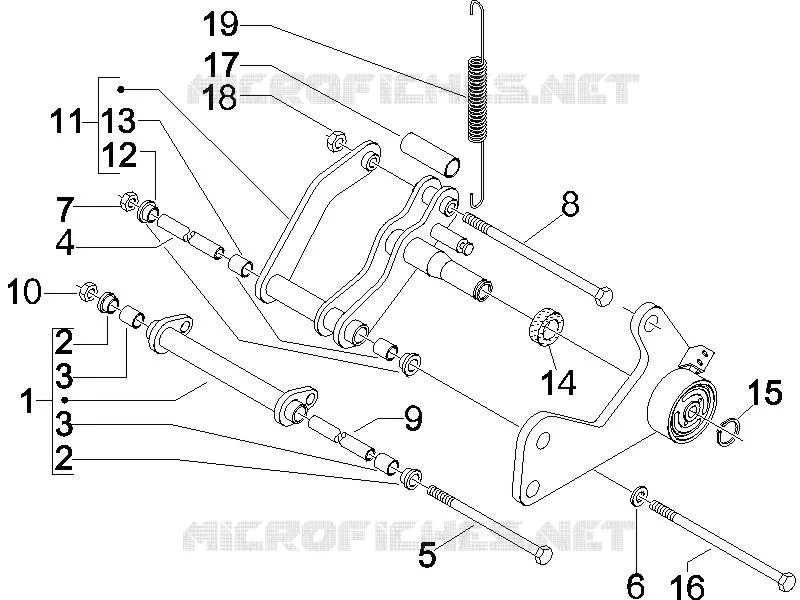

Swinging arm
1
2
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Swinging arm
601825
Not Available
2
Bush
598917
$0,67 Unit Price incl. VAT
3
Roller cage
600161
$6,98 Unit Price incl. VAT
4
Spacer L=183 mm
CM067801
$6,51 Unit Price incl. VAT
5
Hex socket screw M12x324
597914
$14,12 Unit Price incl. VAT
6
Washer
266845
$0,50 Unit Price incl. VAT
7
Nut M12
271740
$0,67 Unit Price incl. VAT
8
Hex screw M10x202
271807
$4,41 Unit Price incl. VAT
9
Spacer 290.00 mm
597857
$15,31 Unit Price incl. VAT
10
Self locking nut M10
232108
Not Available
10
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
11
Engine side swinging arm
56331R
Not Available
11
Engine side swinging arm
599246
Not Available
12
Bush
597317
$0,92 Unit Price incl. VAT
13
Roller cage
597374
Not Available
14
Silent-block
599250
$8,65 Unit Price incl. VAT
15
Circlip
006416
$0,08 Unit Price incl. VAT
16
screw M10x220
598237
$7,65 Unit Price incl. VAT
17
Spacer
599077
$6,60 Unit Price incl. VAT
18
Nut
564878
$2,99 Unit Price incl. VAT
19
Spring
599059
$4,82 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
