Front glove-box - Knee-guard panel for GILERA PIAGGIO VESPA GTS from 2009

Front glove-box - Knee-guard panel

1

Front glove comp.

5771740090

Not Available

1

Front glove comp.

57717400F2

$656,14 Unit Price incl. VAT

1

Front glove comp.

57717400GP

Not Available

1

Front glove comp.

57717400DE

Not Available

1

Front glove comp.

577174

Not Available

1

Front glove comp.

57717400R7

Not Available

2

VITE

258249

$0,09 Unit Price incl. VAT

3

PIASTRINA EL.6,5X11X0

CM017408

$0,25 Unit Price incl. VAT

4

VITE AUTOF. D4,2X25

014754

$2,95 Unit Price incl. VAT

5

TASSELLO

199190

$2,95 Unit Price incl. VAT

6

Self-tap screw

576189

$0,05 Unit Price incl. VAT

7

PIASTRINA ELASTICA

CM017410

$0,34 Unit Price incl. VAT

8

Net panel (l)

577856

Not Available

9

Net panel (r)

577857

Not Available

10

VITE AUTOFILETTANTE PER MATERIE PLAST.

268596

$0,08 Unit Price incl. VAT

11

PORTELLO BAULETTO

577175

$149,25 Unit Price incl. VAT

11

Glove compartment door

57717500GP

$185,67 Unit Price incl. VAT

11

PORTELLO BAULETTO GTS BLEU 222/A

57717500DE

$185,67 Unit Price incl. VAT

11

Glove compartment door

57717500F2

Not Available

11

PORTELLO BAULETTO

5771750090

$185,67 Unit Price incl. VAT

11

PORTELLO BAULETTO ANT.

57717500R7

$185,67 Unit Price incl. VAT

12

Gasket

CM006307

Not Available

13

SQUADRETTA FISSAGGIO PORTELLO

257614

$1,09 Unit Price incl. VAT

14

VITE AUTOF. TCCIC D4,2x13 UNI 947

259349

$0,17 Unit Price incl. VAT

15

GANCIO PORTABORSA COMPLETO

575819

$12,88 Unit Price incl. VAT

16

SQUADRETTA

252420

$0,59 Unit Price incl. VAT

17

VITE AUTOFILETTANTE PER MATERIE PLAST.

268596

$0,08 Unit Price incl. VAT

18

CONTROSPORTELLO

577468

$27,67 Unit Price incl. VAT

19

VITE AUTOFILETTANTE

296141

$0,08 Unit Price incl. VAT

20

PARATIA INTERNA BAULETTO

623776

$8,91 Unit Price incl. VAT

21

CORNICE INTERNA BAULETTO

577447

$10,76 Unit Price incl. VAT

22

TAPPO PER TROUSSE ATTREZZI

620452

$5,38 Unit Price incl. VAT

23

MOLLA

577399

$2,61 Unit Price incl. VAT

24

Spring

577005

Not Available

25

CAGNOLETTO

575607

$1,35 Unit Price incl. VAT

26

LEVETTA PER SERRATURA

577453

$5,38 Unit Price incl. VAT

27

VITE SPECIALE M4

299972

$0,50 Unit Price incl. VAT

28

DADO AUTOFRENANTE M4

577620

$0,08 Unit Price incl. VAT

29

Left flap

577395

Not Available

29

PORTELLO SINISTRO

577395000C

$15,22 Unit Price incl. VAT

30

VITE AUTOFILETTANTE

259372

$2,99 Unit Price incl. VAT

31

PORTELLO DESTRO

577396000C

$15,22 Unit Price incl. VAT

32

VITE AUTOFILETTANTE

259372

$2,99 Unit Price incl. VAT

33

LEVETTA

577861

$1,35 Unit Price incl. VAT

34

PERNO

577400

$5,38 Unit Price incl. VAT

35

MANCETTA ADESIVA

577594

$0,42 Unit Price incl. VAT

36

PANNELLO INSONORIZZANTE

620693

$7,23 Unit Price incl. VAT

37

VITE METRICA CON CODOLO

575249

$0,66 Unit Price incl. VAT

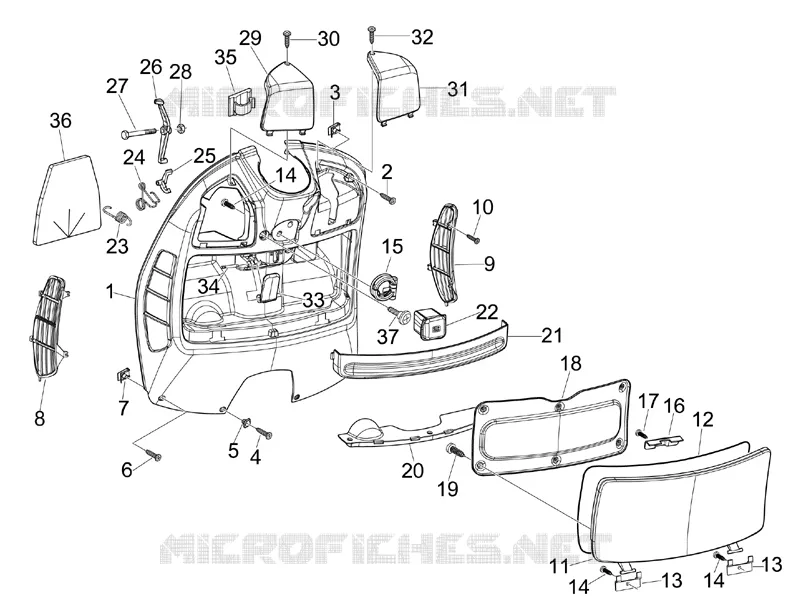

Find the detailed Front glove-box - Knee-guard panel GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
