Brakes pipes - Calipers for GILERA PIAGGIO VESPA GTS from 2007

Brakes pipes - Calipers

1

Brake caliper Heng Tong

CM068301

Not Available

2

KIT PASTICCHE FRENO

647078

$35,62 Unit Price incl. VAT

3

RONDELLA PIANA

003058

$0,08 Unit Price incl. VAT

4

VITE TCEI M8X18

319532

$3,65 Unit Price incl. VAT

5

RONDELLA ELAST.ONDULATA (D15 F8,6)

709047

$0,08 Unit Price incl. VAT

6

TUBAZIONE IDRAUL.FRENO ANT.

597856

$62,52 Unit Price incl. VAT

7

RONDELLA

127927

$0,25 Unit Price incl. VAT

8

VITE ESP.TE M10X18

265451

$9,25 Unit Price incl. VAT

9

Pinza freno Heng Tong

CM074101

$86,40 Unit Price incl. VAT

10

COPPIA PASTICCHE FRENO

647161

$36,45 Unit Price incl. VAT

10

Brake pads kit

497348

Not Available

11

VITE T.C.ESAG.INC.M8x40 UNI 5931-84 8.8

149104

$0,51 Unit Price incl. VAT

12

RONDELLA ELAST.ONDULATA (D15 F8,6)

709047

$0,08 Unit Price incl. VAT

13

RONDELLA PIANA METALLI

828961

$0,28 Unit Price incl. VAT

14

Guard

580160

Not Available

15

RONDELLA

127927

$0,25 Unit Price incl. VAT

16

VITE ESP.TE M10X18

265451

$9,25 Unit Price incl. VAT

17

DADO AUTOFRENANTE

241936

$0,08 Unit Price incl. VAT

18

VITE METRICA CON INT.A CROCE M6x16.

272836

$3,70 Unit Price incl. VAT

19

Guard

580160

Not Available

20

Rear brake hydraulic piping.

601952

Not Available

21

Screw w/ flange M6x30

289731

Not Available

22

FASCETTA

597418

$3,65 Unit Price incl. VAT

23

FASCETTA

564629

$2,50 Unit Price incl. VAT

24

MOLLETTA RITEGNO TUBI

CM006903

$1,43 Unit Price incl. VAT

25

FASCETTA A STRAPPO

145298

$0,08 Unit Price incl. VAT

26

FASCETTA A STRAPPO

257134

$0,25 Unit Price incl. VAT

27

FASCETTA

564761

$0,38 Unit Price incl. VAT

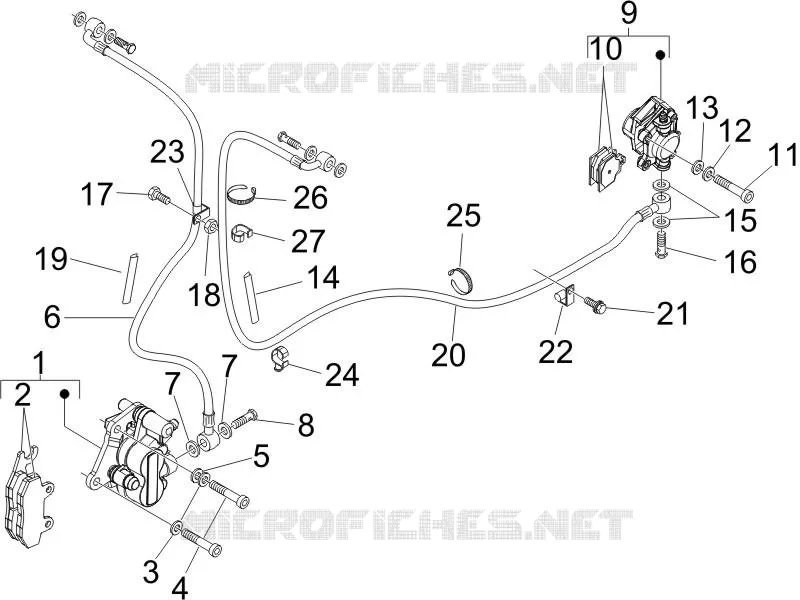

Find the detailed Brakes pipes - Calipers GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for GTS

Front headlamps - Turn signal lamps

Crankcase

Swinging arm

Handlebars coverages

Driven pulley

Stand/s

Handlebars - Master cil.

Front wheel

Cooling system

Fork/steering tube - Steering bearing unit

Flywheel magneto

Engine, assembly

Front shield

Rear suspension - Shock absorber/s

Rear wheel

Meter combination - Cruscotto

Transmissions

Cylinder head cover

Side cover - Spoiler

Locks

Anti-percolation system

Oil pump

Fuel tank

Stater - Electric starter

Plates - Emblems

Brakes pipes - Calipers

Selectors - Switches - Buttons

Crankcase cover - Crankcase cooling

Saddle/seats

Reduction unit

Air filter

Central cover - Footrests

Rear headlamps - Turn signal lamps

Wheel huosing - Mudguard

Throttle body - Injector - Union pipe

Driving mirror/s

Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil

Front glove-box - Knee-guard panel

Main cable harness

Cooler pump

Driving pulley

Rocking levers support unit

Helmet huosing - Undersaddle

Crankshaft

Supply system

Frame/bodywork

Remote control switches - Battery - Horn

Rear luggage rack

Head unit - Valve

Cylinder-piston-wrist pin unit

Rear cover - Splash guard

Silencer

Flywheel magneto cover - Oil filter

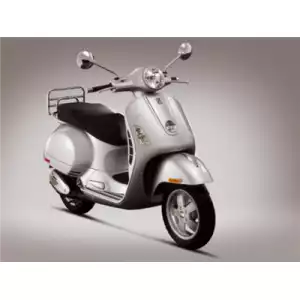

GILERA PIAGGIO VESPA GTS 2007
