Engine displacement
250
2
Model
GTS
3
Year
2006
4
Trim
GTS
5
Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
Front wheel
by
Fork/steering tube - Steering bearing unit
Cooling system
1
1
2
2
3
3
4
5
6
7
8
9
10
10
11
12
14
15
15
16
17
17
18
19
20
21
22
23
23
23
24
25
26
27
28
29
29
29
29
30
30
30
30
31
32
32
32
32
33
33
34
35
36
37
38
39
40
41
42
1
RADIATORE ACQUA
577183
$50,73 Unit Price incl. VAT
2
DADO ES.FLG.M6 DIN-6923
288245
$0,16 Unit Price incl. VAT
3
VITE AUTOFIL. TBCIC 3,8x16
270793
$0,08 Unit Price incl. VAT
4
ELETTROVENTOLA
584669
$76,39 Unit Price incl. VAT
5
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
6
VITE METRICA CON INT.A CROCE M6x16.
272836
$3,70 Unit Price incl. VAT
6
VITE METRICA IMP. TORX(H=16)
CM179301
$0,25 Unit Price incl. VAT
7
Coolant tank
657110
Not Available
8
TAPPO SERB.LIQUIDO RAF
623673
$15,97 Unit Price incl. VAT
9
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
10
VITE METRICA(IMPRONTA TORX)
CM179201
$0,34 Unit Price incl. VAT
10
VITE METRICA CON CODOLO
575249
$0,66 Unit Price incl. VAT
11
CONVOGLIATORE ARIA SX
577187
$15,22 Unit Price incl. VAT
12
CONVOGLIATORE ARIA DX
622839
$15,22 Unit Price incl. VAT
14
RACCORDO
577195
$8,16 Unit Price incl. VAT
15
VITE METRICA(IMPRONTA TORX)
CM179201
$0,34 Unit Price incl. VAT
15
VITE METRICA CON CODOLO
575249
$0,66 Unit Price incl. VAT
16
RONDELLA ELAST.ONDULATA (D15 F8,6)
709047
$0,08 Unit Price incl. VAT
17
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
18
RACCORDO PER TUBI ACQUA
656449
$17,83 Unit Price incl. VAT
19
TAPPO M14X1,5
621365
$4,82 Unit Price incl. VAT
20
GUARNIZIONE INIETTORE
168077
$3,65 Unit Price incl. VAT
21
TUBO COLL.RACCORDO-VASO ESPANSIONE
577433
$5,38 Unit Price incl. VAT
22
Hose clamp
CM001902
Not Available
23
FASCETTA STRINGITUBO
CM001904
$0,75 Unit Price incl. VAT
24
TUBO COLL.RACCORDO-VASO ESPANSIONE
57314R
$7,23 Unit Price incl. VAT
25
TUBO COLL.RADIATORE-RACCORDO SX
623013
$5,38 Unit Price incl. VAT
26
TUBO COLL.RADIATORE-RACCORDO SX
577384
$8,91 Unit Price incl. VAT
27
TUBO COLL.RADIATORE
577201
$26,74 Unit Price incl. VAT
28
TUBO COLL.RADIATORE
57313R
$26,74 Unit Price incl. VAT
29
FASCETTA STRINGITUBO
CM001907
$0,84 Unit Price incl. VAT
30
FASCETTA STRINGITUBO
CM001905
$1,38 Unit Price incl. VAT
31
pipe
577205
Not Available
32
FASCETTA STRINGITUBO (D.28,6 S.0,6 L.7)
CM001915
$1,03 Unit Price incl. VAT
33
FASCETTA STRINGITUBO (D.30,1 S.0,6 L.7)
CM001922
$3,65 Unit Price incl. VAT
34
TUBO COLL.RACCORDO SUPERIORE
57333R
$56,11 Unit Price incl. VAT
35
FASCETTA STRINGITUBO
CM001904
$0,75 Unit Price incl. VAT
35
FASCETTA STRINGITUBO(D.30,8 S.0,6 L.7)
CM001908
$3,65 Unit Price incl. VAT
36
Head coupling tube
622052
Not Available
37
Thermal switch joint
949625
$5,38 Unit Price incl. VAT
38
GUARNIZIONE INIETTORE
168077
$3,65 Unit Price incl. VAT
39
TERMOINTERRUTTORE
584676
$25,98 Unit Price incl. VAT
40
MOLLETTA RITEGNO TUBI
CM006903
$1,43 Unit Price incl. VAT
41
FASCETTA A STRAPPO
145298
$0,08 Unit Price incl. VAT
42
PROTEZIONE BORDO SCOCCA
583282
$7,80 Unit Price incl. VAT

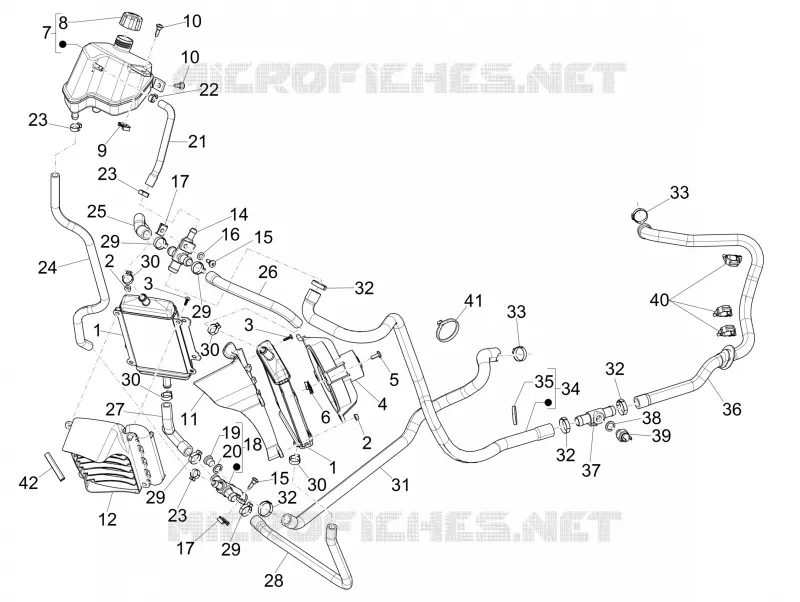

Find the detailed Cooling system GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
