Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
Frame/bodywork
by
Rear suspension - Shock absorber/s
Cooling system
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
16
17
18
19
20
21
22
23
24
28
29
30
30
31
31
32
33
34
35
36
37
37
37
38
39
1
RADIATORE ACQUA
577183
$50,73 Unit Price incl. VAT
2
DADO ES.FLG.M6 DIN-6923
288245
$0,16 Unit Price incl. VAT
3
VITE AUTOFILET. CON IMPRONTA TORX
CM178606
$0,16 Unit Price incl. VAT
3
VITE AUTOFIL. TBCIC 3,8x16
270793
$0,08 Unit Price incl. VAT
4
ELETTROVENTOLA
584669
$76,39 Unit Price incl. VAT
5
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
6
VITE METRICA IMP. TORX(H=16)
CM179301
$0,25 Unit Price incl. VAT
7
Coolant tank
657110
Not Available
8
TAPPO SERB.LIQUIDO RAF
623673
$15,97 Unit Price incl. VAT
9
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
10
VITE
257404
$2,95 Unit Price incl. VAT
11
TUBO COLL.RADIATORE
57313R
$26,74 Unit Price incl. VAT
12
TUBO COLL.RADIATORE
57313R
$26,74 Unit Price incl. VAT
13
TUBO COLL.RACCORDO SUPERIORE
57333R
$56,11 Unit Price incl. VAT
14
FASCETTA STRINGITUBO(D.30,8 S.0,6 L.7)
CM001908
$3,65 Unit Price incl. VAT
16
CONVOGLIATORE ARIA SX
577187
$15,22 Unit Price incl. VAT
17
CONVOGLIATORE ARIA DX
622839
$15,22 Unit Price incl. VAT
18
TUBO COLL.RADIATORE
577201
$26,74 Unit Price incl. VAT
19
TUBO COLL.RADIATORE-RACCORDO SX
577384
$8,91 Unit Price incl. VAT
20
pipe
577205
Not Available
20
TUBO COLL.RACC.INF.POMPA
656437
$20,60 Unit Price incl. VAT
21
TUBO COLL.RACCORDO-VASO ESPANSIONE
57314R
$7,23 Unit Price incl. VAT
22
TUBO COLLEGAMENTO RACCORDO-TESTA
653501
$31,97 Unit Price incl. VAT
23
TUBO COLL.RADIATORE-RACCORDO SX
623013
$5,38 Unit Price incl. VAT
24
RACCORDO PER TUBI ACQUA
656449
$17,83 Unit Price incl. VAT
28
PROTEZIONE A = 45
CM077701
$4,32 Unit Price incl. VAT
29
RACCORDO
577195
$8,16 Unit Price incl. VAT
30
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
31
VITE METRICA(IMPRONTA TORX)
CM179201
$0,34 Unit Price incl. VAT
31
VITE METRICA CON CODOLO
575249
$0,66 Unit Price incl. VAT
32
FASCETTA STRINGITUBO
CM001903
$0,84 Unit Price incl. VAT
32
Hose clamp
CM001902
Not Available
33
FASCETTA STRINGITUBO
CM001904
$0,75 Unit Price incl. VAT
34
FASCETTA STRINGITUBO
CM001905
$1,38 Unit Price incl. VAT
35
FASCETTA STRINGITUBO
CM001907
$0,84 Unit Price incl. VAT
36
FASCETTA STRINGITUBO(D.30,8 S.0,6 L.7)
CM001908
$3,65 Unit Price incl. VAT
37
FASCETTA STRINGITUBO (D.28,6 S.0,6 L.7)
CM001915
$1,03 Unit Price incl. VAT
38
FASCETTA STRINGITUBO (D.30,1 S.0,6 L.7)
CM001922
$3,65 Unit Price incl. VAT
39
Hose clamp
622229
Not Available

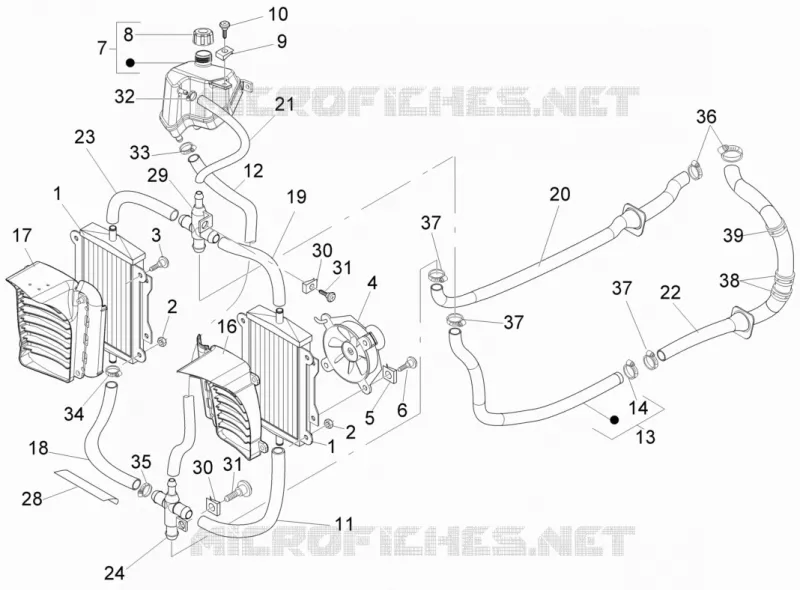

Find the detailed Cooling system GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
