Parts Catalog
Rocking levers support unit
6
Parts Diagram
Parts Catalog
Stand/s
by
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
Rocking levers support unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
1
Intake rocker with shoe
B0184835
Not Available
2
Adjuster screw
82817R
$8,01 Unit Price incl. VAT
3
DADO REGOLAZ.BILANCERE
484819
$0,24 Unit Price incl. VAT
4
Exhaust rocker with shoe
B0184845
Not Available
5
Adjuster screw
82817R
$8,01 Unit Price incl. VAT
6
DADO REGOLAZ.BILANCERE
484819
$0,24 Unit Price incl. VAT
7
ASSE BILANCERI
486343
$2,77 Unit Price incl. VAT
8
ASSE A CAMME CON P.I. X RIC.
8759585
$123,39 Unit Price incl. VAT
9
Camshaft plate
833308
Not Available
10
VITE A TESTA ESAGONALE FLANGIATA
484123
$0,16 Unit Price incl. VAT
11
RONDELLA SPECIALE
877310
$3,65 Unit Price incl. VAT
12
CORONA DISTRIBUZIONE
877308
$8,91 Unit Price incl. VAT
12
Timing system gear
486336
$3,55 Unit Price incl. VAT
12
Timing system gear
877771
$11,77 Unit Price incl. VAT
13
GUARNIZIONE
487833
$0,24 Unit Price incl. VAT
14
Decompression counterweight
829139
Not Available
15
MOLLA DECOMPRESSORE
486974
$0,15 Unit Price incl. VAT
16
Decompressor counterweight
486331
Not Available
17
Decompression bell
826396
$3,93 Unit Price incl. VAT
18
Hex socket screw M5x30
B016799
$3,65 Unit Price incl. VAT
18
Hex socket screw M5x30
018538
Not Available
19
VITE (M6X35)
414838
$0,67 Unit Price incl. VAT
20
BILANCIERE DI ASPIRAZIONE COMPL.
B019352
$167,84 Unit Price incl. VAT
21
VITE COMPLETA DI PASTIGLIA
B019290
$7,30 Unit Price incl. VAT
22
DADO REGOLAZ.BILANCERE
879916
$3,65 Unit Price incl. VAT
23
BILANCIERE DI SCARICO COMPL.
B019354
$167,84 Unit Price incl. VAT
24
VITE COMPLETA DI PASTIGLIA
B019290
$7,30 Unit Price incl. VAT
25
DADO REGOLAZ.BILANCERE
879916
$3,65 Unit Price incl. VAT
26
Camshaft with U.P.
1A000611R
Not Available
27
LAMIERINO ALBERO A CAMME
877309
$1,41 Unit Price incl. VAT
28
VITE A TESTA ESAGONALE FLANGIATA
484123
$0,16 Unit Price incl. VAT
29
CORONA DISTRIBUZIONE
B014970
$12,11 Unit Price incl. VAT
30
Decompression counterweight
B0149715
$61,48 Unit Price incl. VAT
31
MOLLA DECOMPRESSORE
B014925
$0,59 Unit Price incl. VAT
32
CONTRAPPESO DECOMPRESSORE
880893
$9,50 Unit Price incl. VAT
33
RONDELLA SPECIALE
B013841
$1,35 Unit Price incl. VAT
34
VITE T.C.E.I. M5x30
1A003053
$0,84 Unit Price incl. VAT
35
VITE (M6X35)
414838
$0,67 Unit Price incl. VAT
36
ASSE BILANCIERI
B019428
$1,37 Unit Price incl. VAT

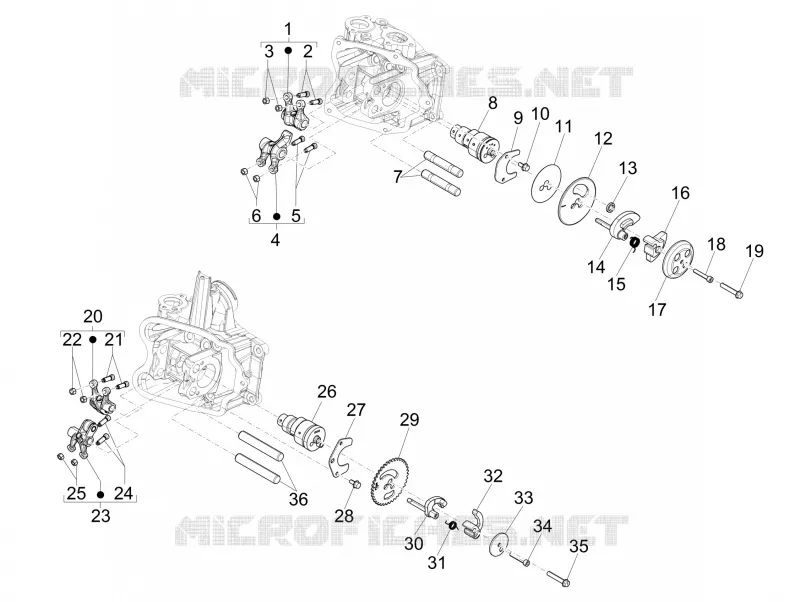

Find the detailed Rocking levers support unit GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
