1
Engine displacement
250
2
Model
GTS
3
Year
2005
4
Trim
GTS
5
Parts Catalog
Rear suspension - Shock absorber/s
6

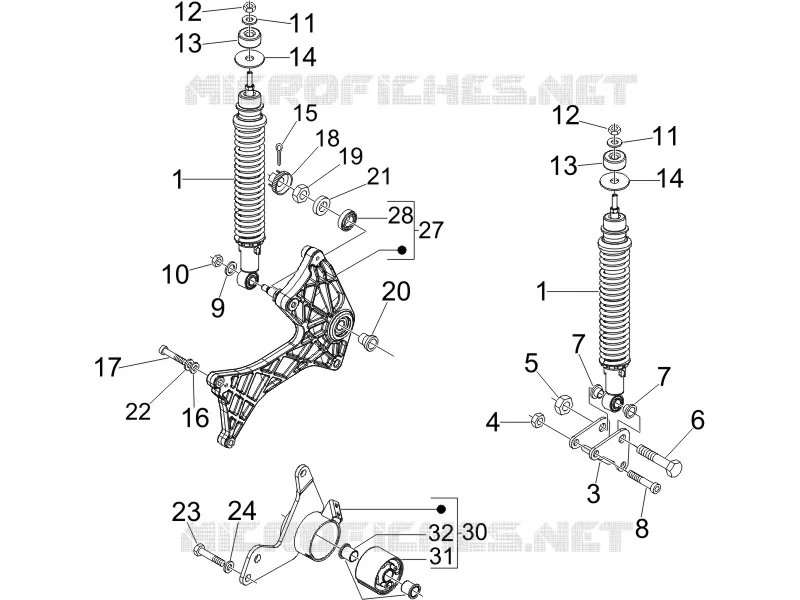

Parts Diagram
Parts Catalog
Crankshaft
by
Rear headlamps - Turn signal lamps
Rear suspension - Shock absorber/s
1
1
3
4
5
6
7
7
8
9
10
11
11
12
12
13
13
14
14
15
16
17
18
19
20
21
22
23
24
27
28
30
31
32
1
Complete rear shock absorber
56234R
Not Available
1
SHOCK ABSORBER
56198R
Not Available
1
Complete rear shock absorber
646553
Not Available
3
plate
598143
$5,38 Unit Price incl. VAT
4
Nut M8
020008
$0,08 Unit Price incl. VAT
5
Self locking nut M10
232108
Not Available
5
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
6
Screw w/ flange M10
268158
$1,26 Unit Price incl. VAT
7
Bush
597149
$3,65 Unit Price incl. VAT
8
Hex socket screw M8x50
844483
$0,67 Unit Price incl. VAT
9
Washer
013962
$2,95 Unit Price incl. VAT
9
Washer
016627
Not Available
10
Self locking nut M10
232108
Not Available
10
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
11
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
12
Nut M8
021108
$0,25 Unit Price incl. VAT
13
Upper buffer
178150
$0,92 Unit Price incl. VAT
14
Flat washer
267038
$0,67 Unit Price incl. VAT
15
Split pin
012789
$0,16 Unit Price incl. VAT
16
Washer
013776
$0,34 Unit Price incl. VAT
17
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
18
Nut hold cap
194423
$0,48 Unit Price incl. VAT
19
Nut M16x13
563728
$1,42 Unit Price incl. VAT
20
Wheel spacer
848039
$18,12 Unit Price incl. VAT
21
Spacer
597528
$1,51 Unit Price incl. VAT
22
Spring washer
709047
$0,08 Unit Price incl. VAT
23
Bolt
031153
$3,65 Unit Price incl. VAT
24
Washer
709646
Not Available
27
Right arm
599593
Not Available
28
Ball bearing
82545R
$12,11 Unit Price incl. VAT
30
Silentblock support bracket
601815
$67,48 Unit Price incl. VAT
31
Silent-block
272750
$12,52 Unit Price incl. VAT
32
Bush
273460
$0,75 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
