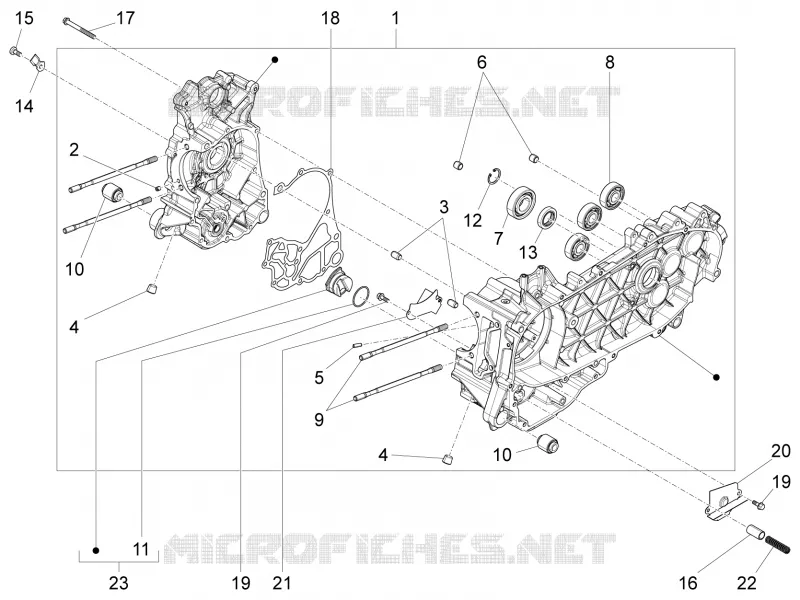

Crankcase
1
2
3
4
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
1
2nd cat. complete crankcase
CM2658010B
$1 878,18 Unit Price incl. VAT
1
Complete crankcase 1st cat.
CM2658010A
$1 878,18 Unit Price incl. VAT
1
Complete crankcase 1st cat.
CM1682010001
Not Available
1
2nd cat. complete crankcase
CM1682010002
$2 228,61 Unit Price incl. VAT
2
Nozzle
B018059
$0,59 Unit Price incl. VAT
3
Pin d.9,5 h=15
B015956
$0,75 Unit Price incl. VAT
4
Plug M12x1,5x11
B015433
$2,66 Unit Price incl. VAT
5
Calibrated nozzle
880706
$2,61 Unit Price incl. VAT
6
Locating dowel
B015957
$0,59 Unit Price incl. VAT
7
Radial bearing 20x50x14
83027R
$9,16 Unit Price incl. VAT
8
Radial bearing 15x42x13
83026R
$4,46 Unit Price incl. VAT
9
Stud bolt
879887
Not Available
10
Silent-block
486081
$6,73 Unit Price incl. VAT
11
Gasket
431065
$0,42 Unit Price incl. VAT
12
Circlip 25x26,9x1,2
B015959
$0,34 Unit Price incl. VAT
13
Gasket ring 22x35x7
B014137
$3,65 Unit Price incl. VAT
14
Ring container lamination
876646
$0,76 Unit Price incl. VAT
15
Screw M6x14
B016000
Not Available
16
Oil pressure adjusting valve
B015432
$2,61 Unit Price incl. VAT
17
screw TEF M6x60
1A000322
Not Available
18
Half crankcase gasket
B015429
$0,92 Unit Price incl. VAT
19
Screw w/ flange M5x16
830061
$0,34 Unit Price incl. VAT
20
Oil bulhead
B014134
$4,12 Unit Price incl. VAT
21
Upper oil bulkhead
B014135
$2,02 Unit Price incl. VAT
22
Valve spring
B015431
$0,50 Unit Price incl. VAT
23
Filter door insert
B015430
$3,87 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
