1
Engine displacement
125
2
Model
GTS
3
Year
2016
4
Trim
GTS 4T ie Super E3
5
Parts Catalog
Throttle body - Injector - Union pipe
6
Parts Diagram
Parts Catalog
Brakes pipes - Calipers
by
Rear wheel

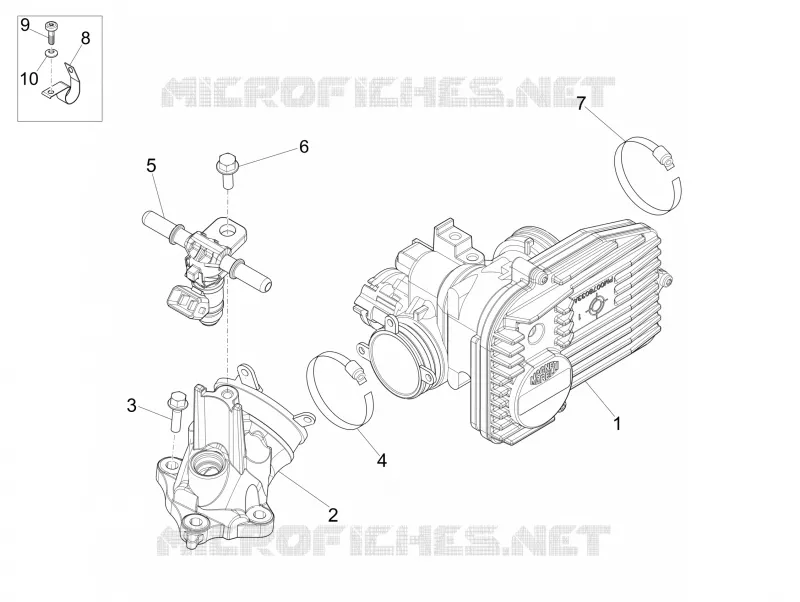

Throttle body - Injector - Union pipe
1
2
3
4
5
6
7
8
9
10
1
Throttle body with E.C.U.
CM081723
Not Available
1
Throttle body with C.D.I.
CM084822
Not Available
1
Throttle body with C.D.I.
CM084827
Not Available
1
Throttle body with E.C.U.
CM084803
Not Available
1
Throttle body with E.C.U.
CM0817155
Not Available
2
Union pipe
875694
$37,39 Unit Price incl. VAT
3
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
4
Hose clamp
709532
Not Available
5
Complete injector
8732885
$53,93 Unit Price incl. VAT
6
Screw w/ flange
1A003001
$0,51 Unit Price incl. VAT
6
Screw w/ flange M5x20
872269
$3,70 Unit Price incl. VAT
7
Hose clamp
260918
$1,68 Unit Price incl. VAT
8
Metallic clamp
642044
$1,01 Unit Price incl. VAT
9
Screw M5x15
873653
$0,92 Unit Price incl. VAT
10
Plain washer 12x5.2x1
006078
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
