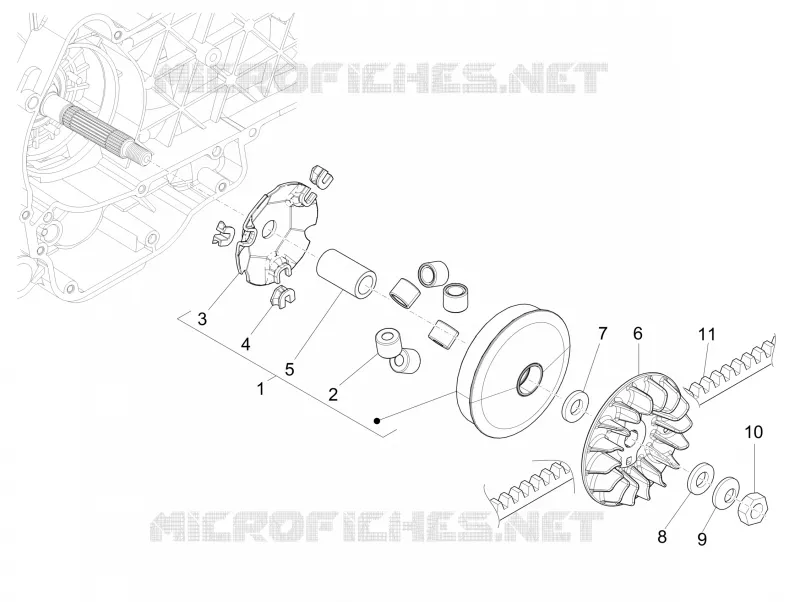

Driving pulley
1
2
3
4
5
6
7
8
9
10
11
1
Half-pulley assy., driving
CM144403
$101,25 Unit Price incl. VAT
2
6 rollers kit 7,4 g
CM1038045
$23,36 Unit Price incl. VAT
3
Roller contrast
842204
$8,31 Unit Price incl. VAT
4
Sliding block
4348555
$0,51 Unit Price incl. VAT
5
Spacer
483889
$19,92 Unit Price incl. VAT
6
Fixed driving half pulley
876921
$20,68 Unit Price incl. VAT
7
Plain washer
831363
$1,18 Unit Price incl. VAT
8
Flat washer 12.1x36x2
840533
$1,60 Unit Price incl. VAT
9
Belleville spring
880950
$2,69 Unit Price incl. VAT
10
Nut M12x1.25
486324
$0,50 Unit Price incl. VAT
11
(Mitsuboshi) V-belt
841213
$113,91 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
