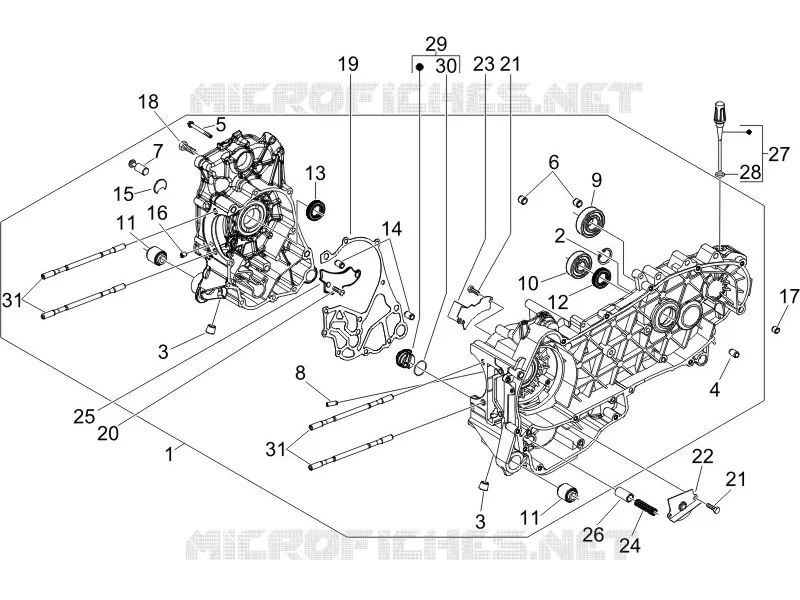

Crankcase
1
2
3
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
26
27
28
29
30
31
31
1
Complete crankcase Cat.2
CM1280085002
Not Available
1
Complete crankcase Cat.1
CM1280085001
Not Available
2
Circlip 25x26.9x1.2
000674
Not Available
3
Plug M12x1,5
411311
$0,67 Unit Price incl. VAT
4
Bush Ø8xØ12x8
431860
$3,70 Unit Price incl. VAT
5
screw M6x60
432142
$0,19 Unit Price incl. VAT
6
Locating dowel Ø11x10
478115
$0,24 Unit Price incl. VAT
7
Springs fixing pin
483785
$5,45 Unit Price incl. VAT
8
Nozzle
484034
$6,44 Unit Price incl. VAT
9
Radial ball bearing 15x42x13
485912
Not Available
10
Radial bearing 20x47x14
485913
Not Available
11
Silent-block
486081
$6,73 Unit Price incl. VAT
12
Gasket ring
82539R
Not Available
12
Gasket ring 20-32-7
82878R
$10,25 Unit Price incl. VAT
13
Gasket ring 20-30-7
82898R
$4,36 Unit Price incl. VAT
13
Gasket ring
82540R
Not Available
14
Pin 6,5x9,5x15
239388
Not Available
15
Cup
840489
$0,33 Unit Price incl. VAT
16
Nozzle D 1.1
844582
$0,05 Unit Price incl. VAT
17
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT
18
screw M6x60
432142
$0,19 Unit Price incl. VAT
19
Half crankcase gasket
845212
Not Available
20
Screw M5x10
018575
$2,95 Unit Price incl. VAT
21
Screw w/ flange M5x16
830061
$0,34 Unit Price incl. VAT
22
Lower oil bulkhead
483767
$0,38 Unit Price incl. VAT
23
Upper oil bulkhead
485047
$0,48 Unit Price incl. VAT
24
Spring
485655
$1,26 Unit Price incl. VAT
25
Plate
828766
$0,24 Unit Price incl. VAT
26
Oil pressure valve
829661
$6,44 Unit Price incl. VAT
27
Complete oil level dipstick
832130
$2,94 Unit Price incl. VAT
28
Gasket ring 14,43x9,19x2,62
827085
$2,99 Unit Price incl. VAT
29
Filter door insert
845861
$3,82 Unit Price incl. VAT
30
Gasket
431065
$0,42 Unit Price incl. VAT
31
Stud bolt
829375
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
