1
Engine displacement
250
2
Model
GT
3
Year
2006
4
Trim
GT ie 60° E3
5
Parts Catalog
Driving pulley
6

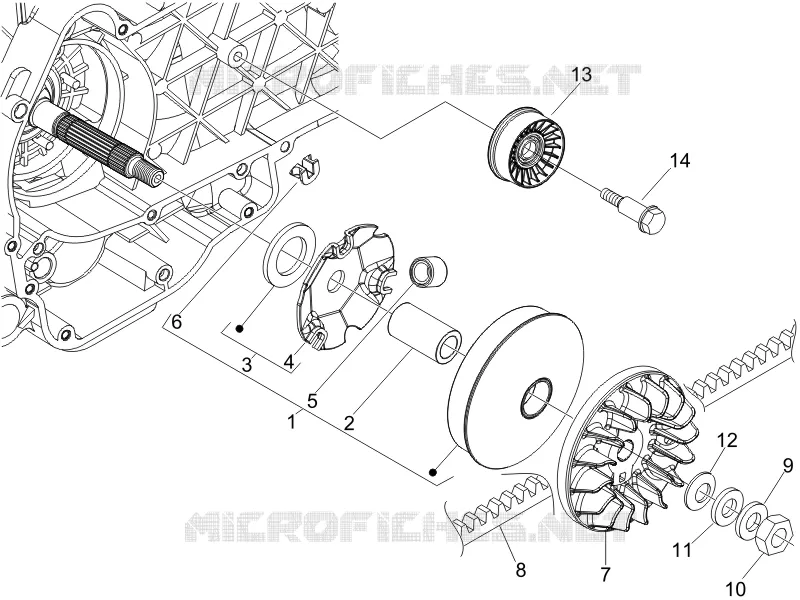

Parts Diagram
Parts Catalog
Cylinder head cover
by
Driven pulley
Driving pulley
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
Complete roller housing
CM144407
$101,25 Unit Price incl. VAT
2
Spacer
483889
$19,92 Unit Price incl. VAT
3
Roller contrast
842204
$8,31 Unit Price incl. VAT
4
Roller contrast
485710
$12,02 Unit Price incl. VAT
5
Roller
842870
$6,35 Unit Price incl. VAT
6
Sliding block
843028
$0,51 Unit Price incl. VAT
7
Fixed pulley
840193
$13,80 Unit Price incl. VAT
8
V-belt
843963
Not Available
9
Plain washer 17x32x1
434885
$0,44 Unit Price incl. VAT
10
Nut M12x1.25
486324
$0,50 Unit Price incl. VAT
11
Flat washer 12.1x36x2
840533
$1,60 Unit Price incl. VAT
12
Belleville spring 0,5x35x17
841379
Not Available
13
Toothed pulley
833989
$17,10 Unit Price incl. VAT
14
Special screw
828217
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
