1
Engine displacement
250
2
Model
GT
3
Year
2006
4
Trim
GT ie 60° E3
5
Parts Catalog

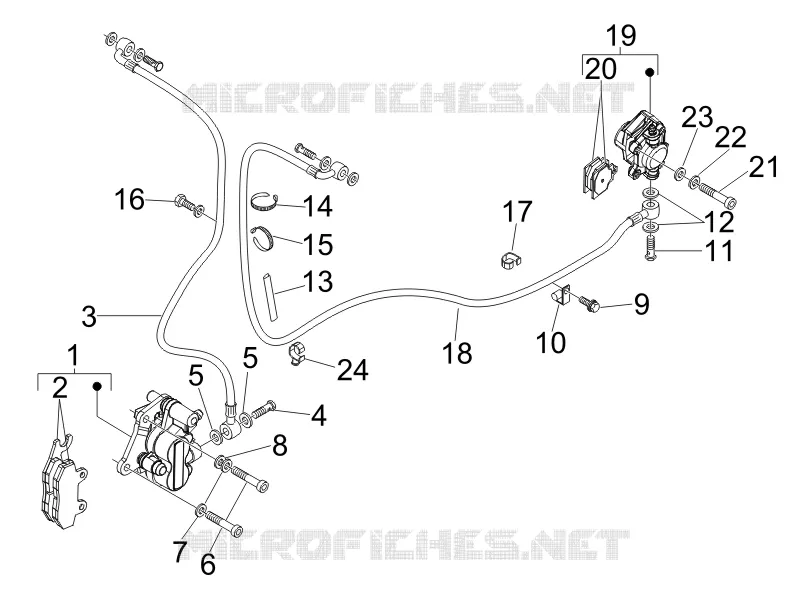

Brakes pipes - Calipers
6
Parts Diagram
Parts Catalog
Rear wheel
by
Transmissions
Brakes pipes - Calipers
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
Brake caliper Heng Tong
CM068301
Not Available
2
Brake pads couple Heng Tong
647078
$35,62 Unit Price incl. VAT
3
Rear brake hydraulic piping
648162
$36,15 Unit Price incl. VAT
4
Oil pipe screw M10x18
265451
$9,25 Unit Price incl. VAT
5
Gasket
127927
$0,25 Unit Price incl. VAT
6
screw
319532
$3,65 Unit Price incl. VAT
7
Spring washer
709047
$0,08 Unit Price incl. VAT
8
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
9
Screw w/ flange M6x30
289731
Not Available
10
Hose clamp
597418
$3,65 Unit Price incl. VAT
11
screw
648336
$3,65 Unit Price incl. VAT
12
Gasket
127927
$0,25 Unit Price incl. VAT
13
Guard
580160
Not Available
14
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
15
Hose clamp
564761
$0,38 Unit Price incl. VAT
16
Screw M6x16
272836
$3,70 Unit Price incl. VAT
17
Hose clamp
217280
Not Available
18
Rear brake hydraulic piping.
647975
Not Available
19
Pinza freno Heng Tong
CM074101
$86,40 Unit Price incl. VAT
20
Rear Brake pads couple.
647161
$36,45 Unit Price incl. VAT
21
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
22
Spring washer
709047
$0,08 Unit Price incl. VAT
23
Flat washer 8,2x17x2,5
828961
$0,28 Unit Price incl. VAT
24
Pipes/cables retainer spring
CM006903
$1,43 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
