Main cable harness for GT ie 60° from 2007

Main cable harness

1

MAIN WIRE GROUP

639974

Not Available

2

Fuse 30A

581440

Not Available

2

Fuse 7,5A

252945

$0,42 Unit Price incl. VAT

2

Fuse 15A

290860

$5,73 Unit Price incl. VAT

2

Reed fuse 10A

292507

$0,42 Unit Price incl. VAT

3

Fuse holder

580653

$35,69 Unit Price incl. VAT

4

Headlight cable assembly

640025

$21,52 Unit Price incl. VAT

5

Lock-strap L=180mm

145298

$0,08 Unit Price incl. VAT

6

PTF block

156205

Not Available

7

Tank cable assembly

640026

$46,11 Unit Price incl. VAT

8

Pipes/cables retainer spring

CM006903

$1,43 Unit Price incl. VAT

9

Non return spring l=27

CM006904

$0,25 Unit Price incl. VAT

10

Non return spring L=33

CM006906

$1,26 Unit Price incl. VAT

11

Screw M6x16

272836

$3,70 Unit Price incl. VAT

12

Spring

140435

$1,01 Unit Price incl. VAT

13

Lock-strap L=180mm

145298

$0,08 Unit Price incl. VAT

14

Lock-strap L=277

257134

$0,25 Unit Price incl. VAT

15

Hose clamp

271451

$3,65 Unit Price incl. VAT

16

Flexible support

291017

$4,88 Unit Price incl. VAT

17

Guard

580160

Not Available

18

Maintenance

584002

$1,77 Unit Price incl. VAT

19

Connectors support bracket

624998

$20,60 Unit Price incl. VAT

20

Hose clamp

638792

$4,82 Unit Price incl. VAT

21

Fuse support bracket

638934

$6,30 Unit Price incl. VAT

22

Connectors support bracket

639026

$7,23 Unit Price incl. VAT

23

Bracket

639843

$6,30 Unit Price incl. VAT

24

Lock-strap L=180mm

145298

$0,08 Unit Price incl. VAT

25

Cap

581061

$1,37 Unit Price incl. VAT

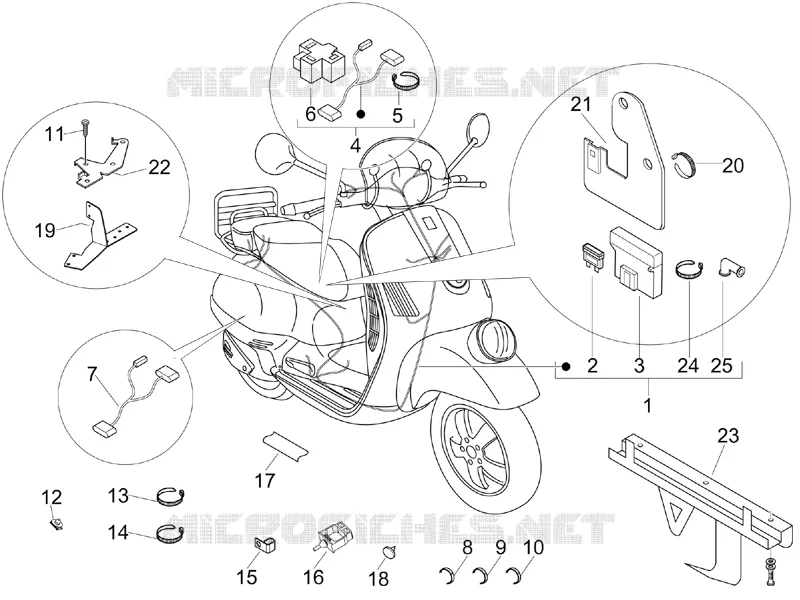

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
