Engine displacement
125
2
Model
GTV
3
Year
2006
4
Trim
GTV 4T E3
5
Parts Catalog
Wheel huosing - Mudguard
6
Parts Diagram
Parts Catalog
Side cover - Spoiler
by
Helmet huosing - Undersaddle
Wheel huosing - Mudguard
1
2
3
4
5
6
7
8
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
27
28
29
30
31
32
33
34
1
Front mudguard
64789100M4
Not Available
1
FF MUDGUARD
64789100EP
Not Available
1
Front mudguard
64789100VG
Not Available
1
Front mudguard
647891
$300,02 Unit Price incl. VAT
2
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
3
Self locking nut M6
241936
$0,08 Unit Price incl. VAT
4
Rear mudguard
621145
Not Available
5
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
6
Headlight support clamp
647892
$50,73 Unit Price incl. VAT
7
Front splash guard
647893
$29,51 Unit Price incl. VAT
8
Self-tap screw
576189
$0,05 Unit Price incl. VAT
10
Suspension flange
648061
$10,76 Unit Price incl. VAT
11
Spring plate M6
254485
$0,34 Unit Price incl. VAT
12
Spring washer 12x6,4x0,5
006976
$0,08 Unit Price incl. VAT
13
screw
239687
$0,34 Unit Price incl. VAT
14
Flanged plate
CM017413
$5,38 Unit Price incl. VAT
15
Washer
004021
$2,27 Unit Price incl. VAT
16
screw
268418
$3,65 Unit Price incl. VAT
17
Headlight cover
64784600EP
$242,84 Unit Price incl. VAT
17
Headlight cover
64784600M4
Not Available
17
Headlight cover
647846
$184,75 Unit Price incl. VAT
17
Headlight cover
64784600VG
Not Available
18
Metric screw TBC
259348
$2,99 Unit Price incl. VAT
19
Self locking nut M6
195482
$0,19 Unit Price incl. VAT
20
Bracket with up
647886
$8,16 Unit Price incl. VAT
21
Headlight anchoring bracket
647887
$18,75 Unit Price incl. VAT
22
screw
268808
Not Available
23
Knurled bushing
830056
$0,34 Unit Price incl. VAT
24
Spring washer 6,4x11x0,5
006966
$0,08 Unit Price incl. VAT
25
Nut
648349
$3,65 Unit Price incl. VAT
26
screw
239687
$0,34 Unit Price incl. VAT
27
Spring washer 12x6,4x0,5
006976
$0,08 Unit Price incl. VAT
28
Washer
004021
$2,27 Unit Price incl. VAT
29
Nut
012112
$0,29 Unit Price incl. VAT
30
Anchoring bracket
648060
$14,30 Unit Price incl. VAT
31
Hex socket screw
581957
$0,16 Unit Price incl. VAT
32
Washer
013963
$0,19 Unit Price incl. VAT
33
Spacer
648059
$3,65 Unit Price incl. VAT
34
Self locking nut
577620
$0,08 Unit Price incl. VAT

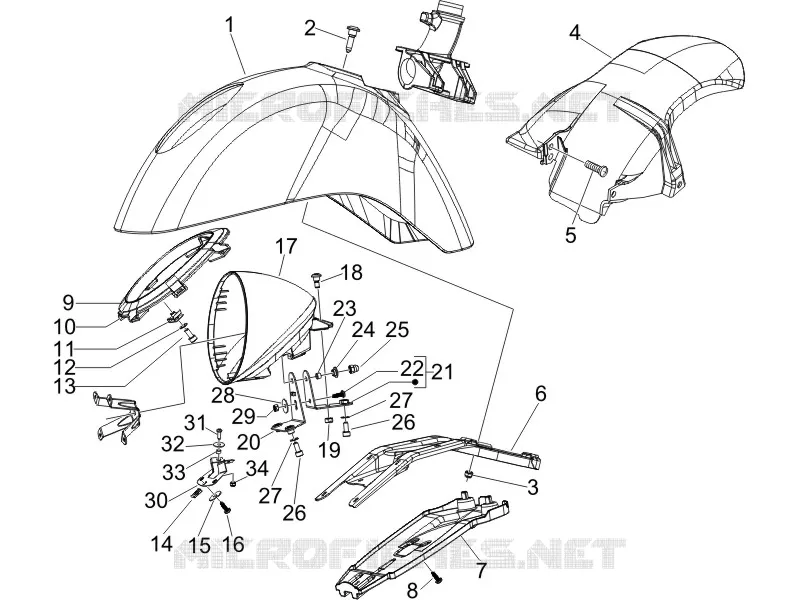

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
