Rear cover - Splash guard for Storm from 2007

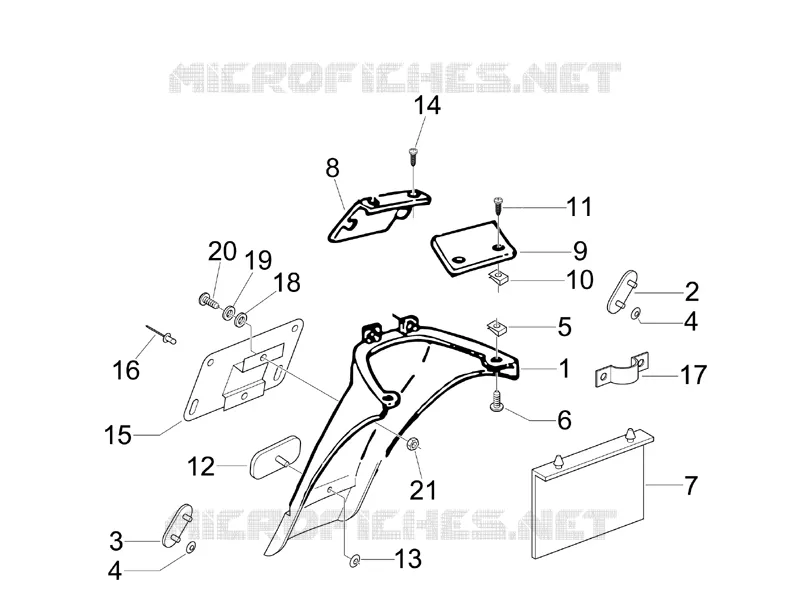

Rear cover - Splash guard

1

Guard

575892000C

Not Available

2

Reflector

295984

$4,11 Unit Price incl. VAT

3

Reflector

295983

Not Available

4

Plate

259539

$0,11 Unit Price incl. VAT

5

Spring plate M6

254485

$0,34 Unit Price incl. VAT

6

Metric screw TBC

575249

$0,66 Unit Price incl. VAT

7

Guard

295403

Not Available

8

Upper element

9234005

$7,23 Unit Price incl. VAT

9

Lower element

9235005

$0,77 Unit Price incl. VAT

12

Reflector

291081

Not Available

13

Spring plate

181351

$0,17 Unit Price incl. VAT

14

screw 4,2x19

258249

$0,09 Unit Price incl. VAT

15

Number plate holder (Lamiera)

580124

Not Available

15

Number plate holder support

2924654

$2,41 Unit Price incl. VAT

16

Rivet

246516

Not Available

17

Elastic spring

231590

$0,25 Unit Price incl. VAT

18

Flat washer 4,2x12x1

013763

$0,08 Unit Price incl. VAT

19

Flat washer 4,2x7,6x0,9

016404

$0,42 Unit Price incl. VAT

20

screw M4x14

018591

Not Available

21

Nut M4

020104

$1,26 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
