Rear cover - Splash guard for Stalker from 2009

Rear cover - Splash guard

1

Guard

638505000C

Not Available

2

Spring plate

CM017410

$0,34 Unit Price incl. VAT

3

Glass

294597

$5,82 Unit Price incl. VAT

4

screw

265636

$3,65 Unit Price incl. VAT

5

Lamp 12V-21/5W

129953

$7,81 Unit Price incl. VAT

6

L.h. glass

638506

$11,67 Unit Price incl. VAT

7

R.h. glass

638507

Not Available

8

Lamp 12V-10W

584332

$11,15 Unit Price incl. VAT

9

Cable harness

580292

Not Available

10

Number plate support

580179

Not Available

11

screw

031027

$2,95 Unit Price incl. VAT

12

Washer 4,3x8x0,5

003054

$0,08 Unit Price incl. VAT

13

Nut M4

020104

$1,26 Unit Price incl. VAT

14

Number plate holder (Plastica 121x141)

638833

$1,65 Unit Price incl. VAT

14

Number plate holder (Plastica 130x105.5)

642235

$7,23 Unit Price incl. VAT

14

Number plate holder (Lamiera 130x105.5)

5801245

Not Available

15

Rivet

246516

Not Available

15

Rivet

273074

$3,65 Unit Price incl. VAT

16

Splash guard

574047000C

$2,45 Unit Price incl. VAT

17

screw 3,5x16

015859

$6,60 Unit Price incl. VAT

18

screw 4,2x19

258249

$0,09 Unit Price incl. VAT

19

Spring plate

CM017410

$0,34 Unit Price incl. VAT

20

Metric screw TBC

575249

$0,66 Unit Price incl. VAT

21

Spring plate M6

254485

$0,34 Unit Price incl. VAT

22

Cover

49250000NI

Not Available

22

Cover

49250000NG

$18,67 Unit Price incl. VAT

22

Covers

4925005

$4,33 Unit Price incl. VAT

23

Metric screw TBC

575249

$0,66 Unit Price incl. VAT

24

Spring plate M6

254485

$0,34 Unit Price incl. VAT

25

Reflector

294519

$5,88 Unit Price incl. VAT

26

Spring plate

181351

$0,17 Unit Price incl. VAT

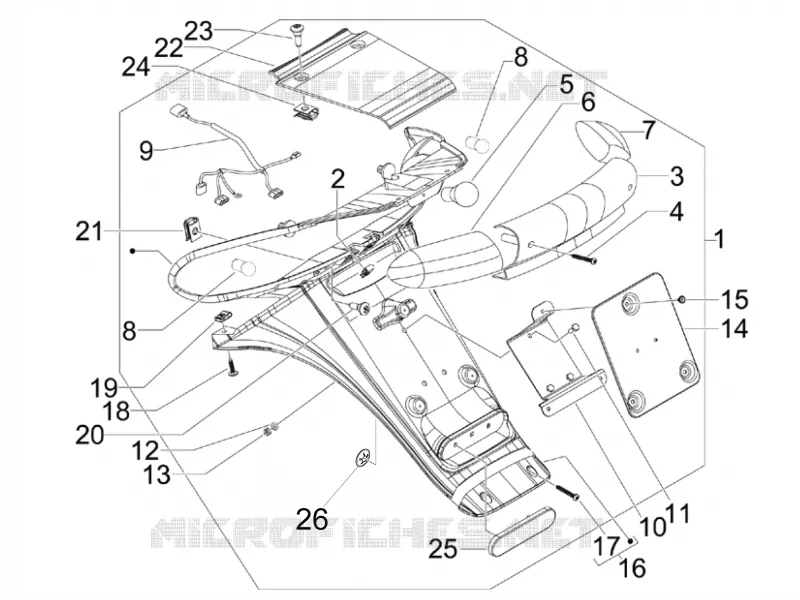

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
