Parts Catalog

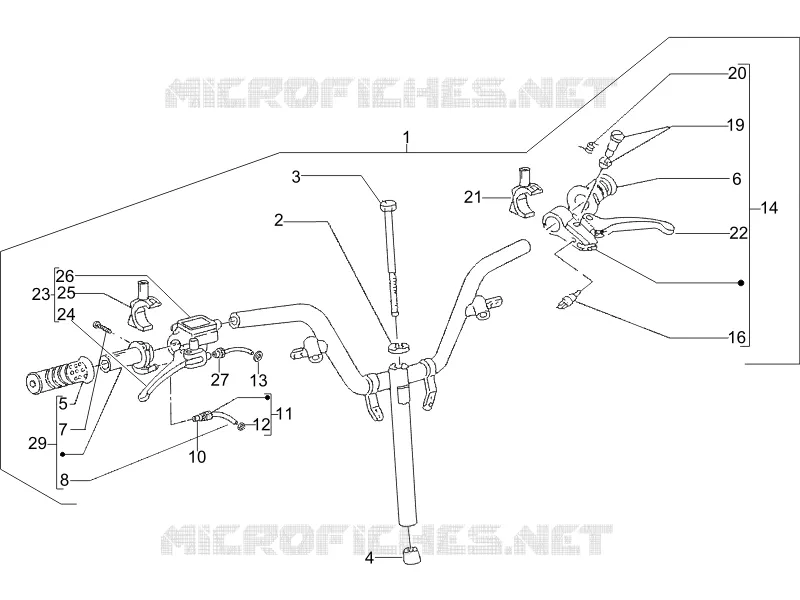

Handlebars - Master cil.
6
Parts Diagram
Parts Catalog
Meter combination - Cruscotto
by
Swinging arm
Handlebars - Master cil.
1
2
3
4
5
6
7
8
10
11
12
13
14
16
19
20
21
22
23
24
25
26
27
29
1
Handlebar
560896
Not Available
2
Washer
563327
$0,38 Unit Price incl. VAT
3
Tie rod
563332
Not Available
4
Cone
581182
Not Available
5
Grip
561529
Not Available
6
Grip
561530
$4,28 Unit Price incl. VAT
7
Screw with bushing
123394
$3,70 Unit Price incl. VAT
8
Transmission
561149
$9,68 Unit Price incl. VAT
9
Terminal
114256
Not Available
10
Guard
147511
$2,95 Unit Price incl. VAT
11
Adjuster screw
269145
$1,30 Unit Price incl. VAT
12
Nut M6
020206
$0,08 Unit Price incl. VAT
13
Ring 38,3x27x1,2
562923
$2,99 Unit Price incl. VAT
14
Hose
564684
Not Available
15
stop Button
580953
$6,23 Unit Price incl. VAT
16
stop Button
580645
Not Available
17
stop Button
580723
Not Available
18
stop Button
580953
$6,23 Unit Price incl. VAT
19
Screw with nut
265249
$3,70 Unit Price incl. VAT
20
Spring
267948
$4,89 Unit Price incl. VAT
21
Bracket
561704
$38,54 Unit Price incl. VAT
22
Brake lever
564682
$2,80 Unit Price incl. VAT
23
Fr. brake master cylinder Heng Tong
CM074903
Not Available
23
Brakes pump
CM063605
Not Available
24
Brake lever (blakc)
564678
$26,45 Unit Price incl. VAT
25
Bracket
561704
$38,54 Unit Price incl. VAT
26
Cover
498373
Not Available
27
SWITCH
126899
Not Available
28
PUSHBUTTON
294619
Not Available
29
Throttle control sleeve assembly
561150
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
