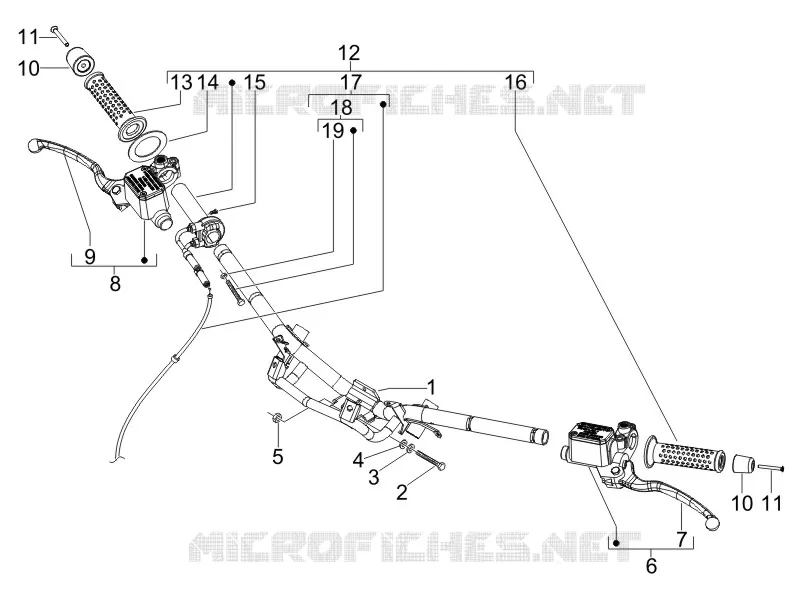

Handlebars - Master cil. for Runner SP from 2010

Handlebars - Master cil.

1

Handlebar

5821164

Not Available

2

Hex socket screw

655554

$3,70 Unit Price incl. VAT

3

Flat elastic washer with internal toothing 17x10,3x2

012543

$0,08 Unit Price incl. VAT

4

Flat washer

178790

$0,51 Unit Price incl. VAT

5

Nut M10

015330

$0,25 Unit Price incl. VAT

6

Rear master cylinder Heng Tong

CM074801

$180,90 Unit Price incl. VAT

7

Brake lever

646833

Not Available

8

Front brakes pump assembly (Heng Tong)

CM074901

$125,55 Unit Price incl. VAT

9

Brake lever

646833

Not Available

10

End terminal

654515

$8,91 Unit Price incl. VAT

11

screw

576836

$3,03 Unit Price incl. VAT

12

Throttle control sleeve assembly

CM060971

$36,82 Unit Price incl. VAT

13

Grip, r.h.

271453

$13,37 Unit Price incl. VAT

14

Ring 38,3x27x1,2

562923

$2,99 Unit Price incl. VAT

15

Screw with bushing

123394

$3,70 Unit Price incl. VAT

16

Grip, l.h.

271452

$13,37 Unit Price incl. VAT

17

Splitter control transmission

949592

$13,01 Unit Price incl. VAT

18

Adjuster screw

269145

$1,30 Unit Price incl. VAT

19

Nut M6

020206

$0,08 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
