Front wheel for Runner SP from 2016

Front wheel

1

FRONT WHEEL

56388R000G

$150,18 Unit Price incl. VAT

2

Front wheel spacer

6019895

Not Available

3

Bearing

649910

$10,14 Unit Price incl. VAT

4

Wheel pin

959376

$17,41 Unit Price incl. VAT

5

Front brake disk

649226

Not Available

6

Hex screw M6x22

667153

$0,25 Unit Price incl. VAT

6

Hex socket screw M6x20

667152

$0,26 Unit Price incl. VAT

7

Spacer

649915

$2,26 Unit Price incl. VAT

8

Cup

564475

$1,49 Unit Price incl. VAT

9

Nut M12

271740

$0,67 Unit Price incl. VAT

10

Tubeless tyre valve

270991

$1,85 Unit Price incl. VAT

11

Decorative strip

64773600H4

$3,50 Unit Price incl. VAT

11

Decorative strip

64773600L1

$7,61 Unit Price incl. VAT

11

Decorative strip

64773600RL

Not Available

12

Tyre (Sava) 120/70-14"

949597

Not Available

13

Phonic wheel M.Y. 2010-2011

650308

$106,06 Unit Price incl. VAT

14

Screw w/ flange M6x25

414837

Not Available

15

Self locking nut M6

288245

$0,16 Unit Price incl. VAT

16

Hose clamp

573918

$1,09 Unit Price incl. VAT

17

Screw M6x16

272836

$3,70 Unit Price incl. VAT

18

Self locking nut M6

288245

$0,16 Unit Price incl. VAT

19

Spacer M.Y. 2012

600257

$5,17 Unit Price incl. VAT

20

Cup

600258

$4,07 Unit Price incl. VAT

21

Support bracket sensor

668254

$8,44 Unit Price incl. VAT

22

Encoder sensor

6433665

Not Available

23

Hex screw M6x20

018639

$0,16 Unit Price incl. VAT

24

Flat washer

668780

$0,76 Unit Price incl. VAT

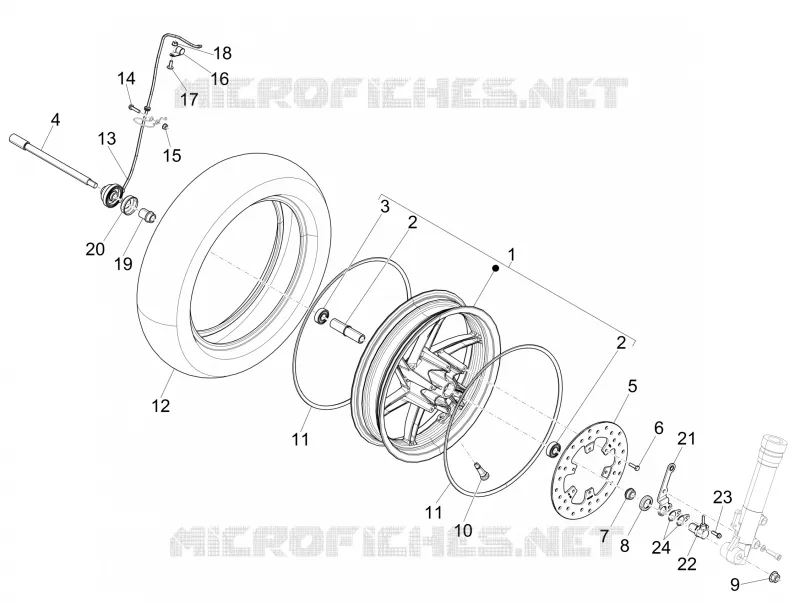

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
