by

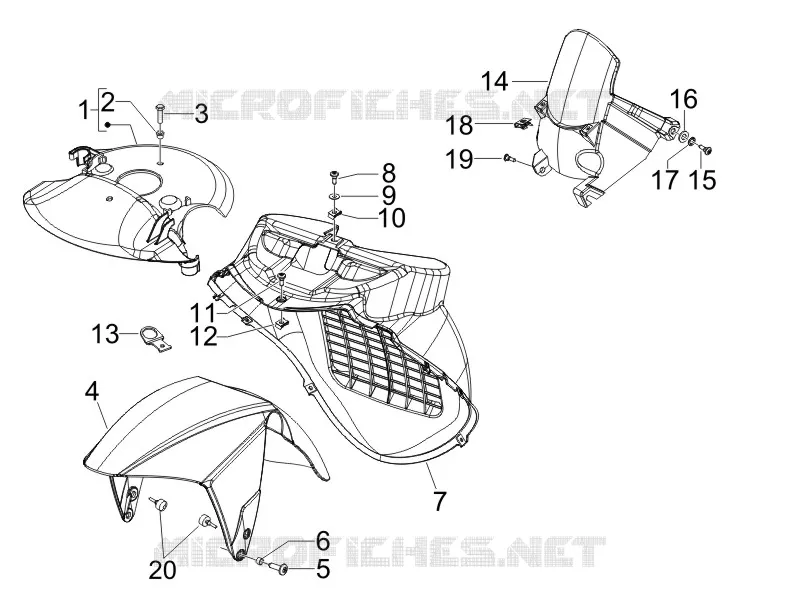

Wheel huosing - Mudguard
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Front mudguard (Susp. Protection)
949454
Not Available
2
Knurled bushing
258536
Not Available
3
Hex screw M6x18
031089
$2,99 Unit Price incl. VAT
4
Front mudguard
64759000BR
Not Available
4
FRONT MUDGUARD
64759000NG
Not Available
4
Front mudguard
647590
$28,96 Unit Price incl. VAT
4
Front mudguard
64759000R7
Not Available
4
Front mudguard
64759000NI
Not Available
4
FRONT MUDGUARD
64759000EU
Not Available
5
Screw M6x16
272836
$3,70 Unit Price incl. VAT
6
Spacer
259828
$3,65 Unit Price incl. VAT
7
Wheel compartment
624425000G
Not Available
8
screw
834065
$0,08 Unit Price incl. VAT
9
Flat washer 5,2x18x1,5
016686
$2,25 Unit Price incl. VAT
10
Spring plate M5
248419
$0,67 Unit Price incl. VAT
11
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
12
Spring plate M6
254485
$0,34 Unit Price incl. VAT
13
Front brake support
949393
$0,93 Unit Price incl. VAT
14
Engine splash guard
959440000G
Not Available
15
screw
015804
$3,65 Unit Price incl. VAT
16
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
17
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
18
Spring plate M6
254485
$0,34 Unit Price incl. VAT
19
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
20
Pad
195700
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
